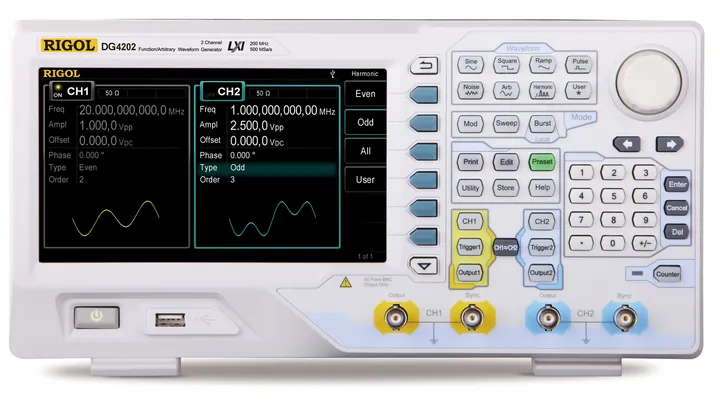

RIGOL DG4202
200 MHz 2-Channel Arbitrary Waveform Generator · DG4000 Series
2 Channel waveform generator with 200 MHz sine wave and 60 MHz square wave capabilities, 500 MSa/sec sample rate, 16 kPt arbitrary memory length, 7" display, and USB and ethernet (LXI) interfaces.
List price $2,299
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG4202 at a glance
- Signals 200 MHz on 2 channels channels.
- 500 MSa/s sample rate for clean edges and arbitrary waveforms.
- 60, 100, 160 or 200 MHz sine on 2 channels.
- 7-inch color display.
- LAN and USB as standard.
CH2RIGOL DG4202 specifications
| Figure | DG4202 | Source |
|---|---|---|
| Part number | DG4202 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG4000 Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Max. real-time sample rate | 500 MSa/s | RIGOL product description |
| Display | 7-inch color | RIGOL product description |
| Interfaces | LAN, USB | RIGOL product description |
| Frequency range | 200 MHz | rigolna.com |
| Square wave up to | 60 MHz | rigolna.com |
| Arbitrary waveform memory | 16 K | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 11 × 12 in | RIGOL price list |
| Shipping weight | 11 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- CB-BNC-BNC-MM-100
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- General bench stimulus up to 200 MHz.
- Two-channel phase and timing work.
- Education labs that want a large, clear display.
CH4Questions buyers ask
What comes in the box with the RIGOL DG4202?
RIGOL lists these standard accessories: CB-BNC-BNC-MM-100, USB Cable.
Can I add options to the DG4202 later?
Yes. RIGOL lists 1 options and software packages for the DG4000 Series (for example Ultra Station-adv). Add them to your quote now or ask about an upgrade later.
Do you ship the DG4202 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG4202
Options and accessories for the DG4202
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Accessories (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| RM-DG4000 | Rack Mount Kit | $159 | |
| RM-DG4000/DS1000Z | Rack Mounting Kit for a DG4000or DS1000Z | $159 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| PA1011 | 10W power amplifier for waveform generators | $451 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG4202 (R5-1) | DG4202 extended warranty, 2 years, option with new product | $187 |
