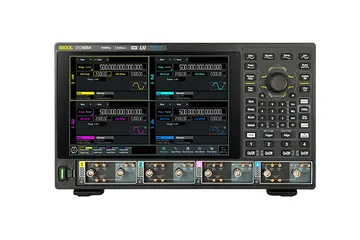

RIGOL DG6054
500 MHz 4-Channel Arbitrary Waveform Generator · DG6000 Series
High-voltage differential function/arbitrary waveform generator, 2.5 GSa/s, 500 MHz, 16-bit, 4 differential channels (equivalent to 8 single-ended channels).
List price $18,799
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG6054 at a glance
- Signals 500 MHz on 4 channels channels.
- 2.50 GSa/s sample rate for clean edges and arbitrary waveforms.
- 2 or 4 differential channels (4/8 single-ended) up to 1 GHz.
- ±10 V high-voltage differential output, fully isolated.
- 2.5 GSa/s, 16-bit, 256 Mpts arb memory per channel.
- Sequence, PRBS, IQ and pattern modes standard.
CH2RIGOL DG6054 specifications
| Figure | DG6054 | Source |
|---|---|---|
| Part number | DG6054 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG6000 Series | RIGOL price list |
| Analog channels | 4 channels | rigolna.com |
| Vertical resolution | 16-bit | DG6000 datasheet |
| Max. real-time sample rate | 2.50 GSa/s | rigolna.com |
| Display | 10.1-inch color touch screen | DG6000 datasheet |
| Interfaces | LAN (10/100/1000, LXI-C), HDMI, USB 3.0 Host & Device | DG6000 datasheet |
| Frequency range | 500 MHz | rigolna.com |
| Square wave up to | 300 MHz | rigolna.com |
| Arbitrary waveform memory | 256 Mpts (512 Mpts opt.) | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.
CH3In the box, and what it is for
What it's good for
- Differential stimulus for high-speed serial and sensor interfaces.
- Driving devices that need high-voltage differential signals.
- Multi-channel automotive and industrial test.
CH4Questions buyers ask
Can it output single-ended signals as well as differential?
Yes. The 2- and 4-channel models give 2 or 4 differential outputs, or 4 or 8 single-ended outputs.
Can I add options to the DG6054 later?
Yes. RIGOL lists 1 options and software packages for the DG6000 Series (for example DG6000-2RL). Add them to your quote now or ask about an upgrade later.
Do you ship the DG6054 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG6054
Options and accessories for the DG6054
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG6000-2RL | 512 Mpts/CH (Max.) Arb Length Upgrade Option | $879 |
Accessories (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM6051 | Thunderbird Platform Rack Mount Kit | $259 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG6054 (R5-1) | DG6054 extended warranty, 2 years, option with new product | $1,539 |
