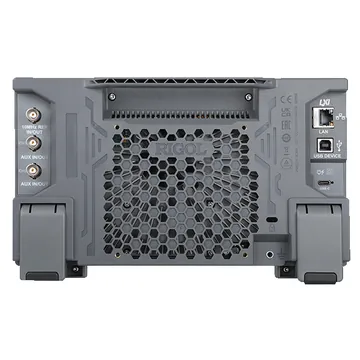

RIGOL DG912 Pro
150 MHz 2-Channel Arbitrary Waveform Generator · DG900 Pro Series
150MHz, 1.25GSa/s, 16bit, 2CH
List price $899
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG912 Pro at a glance
- Signals 150 MHz on 2 channels channels.
- 1.25 GSa/s sample rate for clean edges and arbitrary waveforms.
- 70, 150 or 200 MHz on 2 channels.
- 1.25 GSa/s and 16-bit resolution.
- 16 Mpts arb memory per channel (32 Mpts optional).
- USB and LAN with Web Control; USB Type-C power.
CH2RIGOL DG912 Pro specifications
| Figure | DG912 Pro | Source |
|---|---|---|
| Part number | DG912 Pro | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG900 Pro Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Vertical resolution | 16-bit | DG900 Pro datasheet |
| Max. real-time sample rate | 1.25 GSa/s | rigolna.com |
| Interfaces | USB, LAN (Web Control); USB Type-C power | DG900 Pro datasheet |
| Frequency range | 150 MHz | rigolna.com |
| Arbitrary waveform memory | 16 Mpts (32 Mpts optional) | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 13.5 × 9.76 × 5.62 in | RIGOL price list |
| Shipping weight | 6.07 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- CB-BNC-BNC-MM-100
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Fast digital and clock stimulus.
- Wideband arbitrary waveforms for communications tests.
- Portable generator work on battery power.
CH4Questions buyers ask
Can it run away from a mains outlet?
Yes. Like the DG800 Pro it has a USB Type-C power input and can run from a mobile power source.
What comes in the box with the RIGOL DG912 Pro?
RIGOL lists these standard accessories: CB-BNC-BNC-MM-100.
Can I add options to the DG912 Pro later?
Yes. RIGOL lists 1 options and software packages for the DG900 Pro Series (for example DG900 Pro-3RL). Add them to your quote now or ask about an upgrade later.
Do you ship the DG912 Pro outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG912 Pro
Options and accessories for the DG912 Pro
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG900 Pro-3RL | 32M upgrade option | $299 |
Accessories (3)
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG912 Pro (R5-1) | DG912 Pro extended warranty, 2 years, option with new product | $81 |
