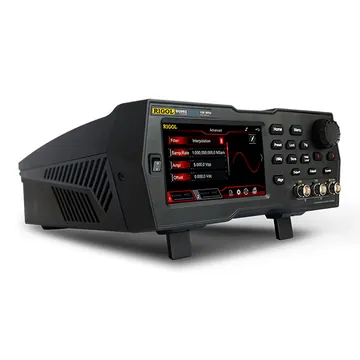

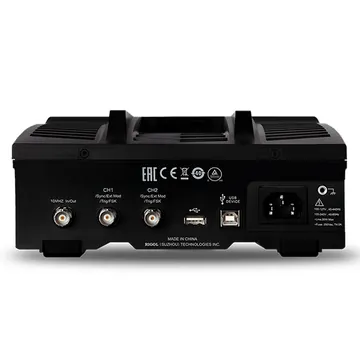

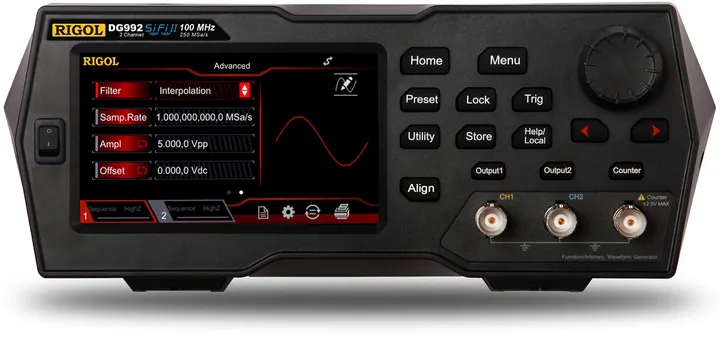

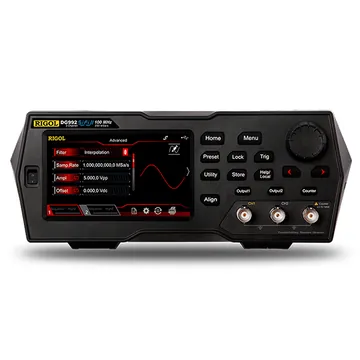

RIGOL DG992
100 MHz 2-Channel Arbitrary Waveform Generator · DG900 Series
100MHz Function Generator, 2 Channel, 250MSa/sec, 16Bit Resolution, 16M Memory
List price $1,438
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DG992 at a glance
- Signals 100 MHz on 2 channels channels.
- 250 MSa/s sample rate for clean edges and arbitrary waveforms.
- 100 MHz on 2 channels.
- 250 MSa/s, 16-bit, 16 Mpts arb memory per channel.
- SiFi II with jitter as low as 200 ps.
CH2RIGOL DG992 specifications
| Figure | DG992 | Source |
|---|---|---|
| Part number | DG992 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DG900 Series | RIGOL price list |
| Analog channels | 2 channels | rigolna.com |
| Vertical resolution | 16-bit | DG900 datasheet |
| Max. real-time sample rate | 250 MSa/s | RIGOL product description |
| Interfaces | USB Host & Device; GPIB via USB-GPIB | DG900 datasheet |
| Frequency range | 100 MHz | rigolna.com |
| Square wave up to | 25 MHz | rigolna.com |
| Arbitrary waveform memory | 16 M | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 13 × 12 × 7 in | RIGOL price list |
| Shipping weight | 7 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What it's good for
- Two-channel stimulus for embedded and analog design.
- Long arbitrary sequences.
- Frequency measurements with the built-in counter.
CH4Questions buyers ask
Do you ship the DG992 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DG992
Options and accessories for the DG992
Accessories (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| USB-LAN | USB2.0 to 100Mbps Ethernet Adaptor | $49 | |
| USB-GPIB-L | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 |
