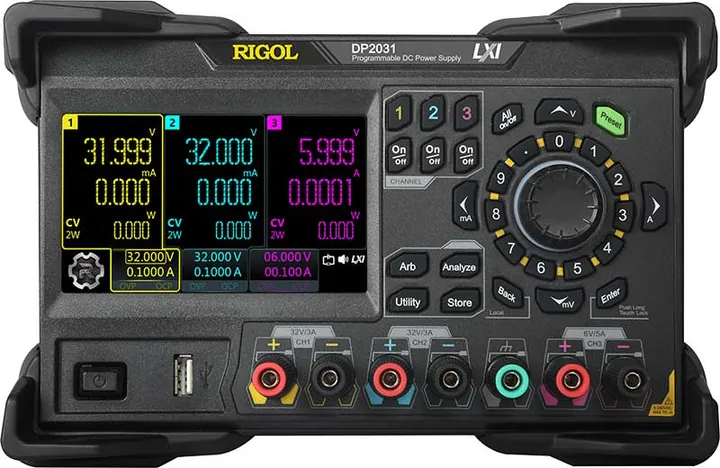

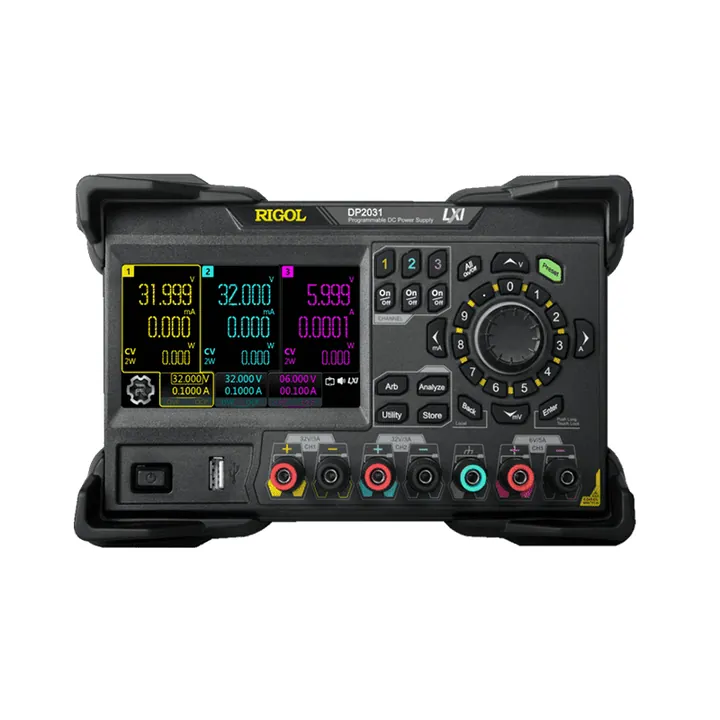

RIGOL DP2031
222 W 3-Channel Programmable DC Power Supply · DP2000 Series
Low current, 222 W, 3 channel fully isolated linear DC power supply
List price $1,199
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DP2031 at a glance
- 3 outputs with 222 W total.
- Output up to 64 Volts / 10 Amps per output.
- 1 µA low-range current measurement for sleep-mode and IoT power profiling.
- Three isolated outputs: 32 V/3 A, 32 V/3 A, 6 V/5 A; 222 W total.
- Automatic low/high range switching and energy-consumption analysis.
- 2- or 4-wire remote sense; front and rear outputs.
CH2RIGOL DP2031 specifications
| Figure | DP2031 | Source |
|---|---|---|
| Part number | DP2031 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DP2000 Series | RIGOL price list |
| Display | 4.3-inch color touch screen | DP2000 datasheet |
| Interfaces | USB Host, LAN, RS-232, digital I/O | DP2000 datasheet |
| Total power | 222 Watts | rigolna.com |
| Outputs | 3 channel(s) | rigolna.com |
| Max. voltage | 64 Volts | rigolna.com |
| Max. current | 10 Amps | rigolna.com |
| Output ranges | up to 64 Volts / 10 Amps per output (see datasheet for each channel) | rigolna.com |
| Readback resolution | 0.1 mV / 0.1 mA; 1 µA on the low current range | DP2000 datasheet |
| Ripple and noise | < 350 µVrms / 2 mVpp | DP2000 datasheet |
| Remote sense | 2- or 4-wire | DP2000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 15 × 12 in | RIGOL price list |
| Shipping weight | 30 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Power Cord
- Spare Fuse
- Two pairs of 10 A testing cables
- USB Cable
- Calibration Certificate
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Profiling the sleep and wake current of IoT and battery devices.
- Powering and measuring a board on one instrument in automated test.
- Rack test systems that need rear outputs and remote sense.
CH4Questions buyers ask
Can the DP2031 measure microamp currents?
Yes. Its low current range measures with 1 µA resolution and switches ranges automatically.
What comes in the box with the RIGOL DP2031?
RIGOL lists these standard accessories: Power Cord, Spare Fuse, Two pairs of 10 A testing cables, USB Cable, Calibration Certificate.
Can I add options to the DP2031 later?
Yes. RIGOL lists 3 options and software packages for the DP2000 Series (for example DP2000-10A, DP2000-GPIB, DP2000-HADC). Add them to your quote now or ask about an upgrade later.
Do you ship the DP2031 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DP2031
Options and accessories for the DP2031
Options & upgrades (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP2000-10A | CH3 10 A high range mode | $199 | |
| DP2000-GPIB | GPIB module option | $199 | |
| DP2000-HADC | 7.5 k/s high-speed sampling option | $199 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| 10A-Testing-Cable | 10 A testing cable for DP Series | $25 | |
| RM-2-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $122 | |
| RM-1-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $137 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP2031 (R5-1) | DP2031 extended warranty, 2 years, option with new product | $108 |
