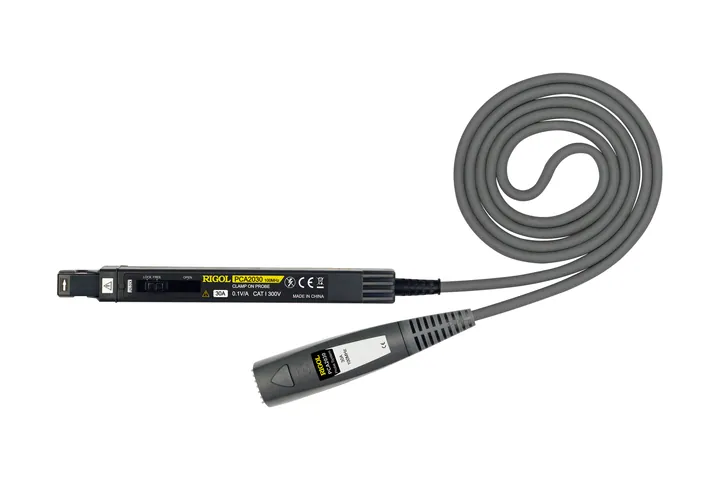

RIGOL PCA2030
100 MHz Current Probe
100 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes
List price $6,390
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL PCA2030 at a glance
- Current probe with 100 MHz of bandwidth.
- Works with RIGOL DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series, DHO4000 Series.
- Clamp-on current probe: measure current without breaking the circuit.
- Shows current and voltage together on one scope for power measurements.
CH2RIGOL PCA2030 specifications
| Figure | PCA2030 | Source |
|---|---|---|
| Part number | PCA2030 | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 100 MHz | RIGOL product description |
| Probe type | Current | RIGOL product description |
| Works with | DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series, DHO4000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 14 × 10 in | RIGOL price list |
| Shipping weight | 8 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What it's good for
- Inrush, ripple and phase current in power supplies and motor drives.
- Power and efficiency measurements alongside a voltage probe.
CH4Questions buyers ask
Do RIGOL current probes need a separate power supply?
The RP1003C, RP1004C, RP1005C and RP1006C need RIGOL's RP1000P probe power supply. Add it to the same quote if you don't have one.
Which instruments does the PCA2030 work with?
RIGOL lists it for the DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series, DHO4000 Series. Tell us your model in the quote request and we'll confirm.
Can I order the PCA2030 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the PCA2030
Works with
DS7000 / MSO7000 Series · DS8000-R Series · MSO8000 Series · DHO4000 Series
