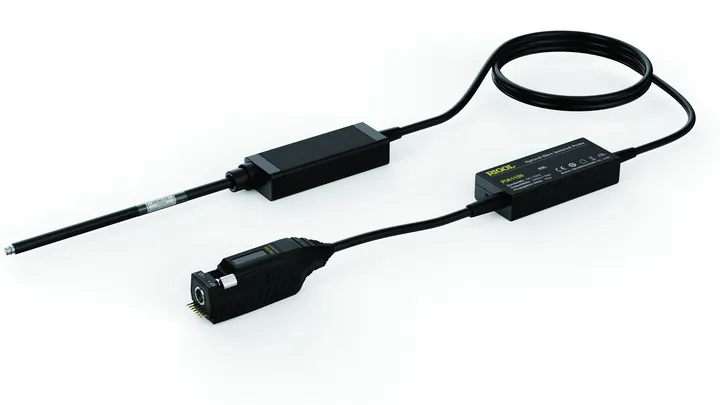

RIGOL PIA1020
200 MHz Isolated Probe
200MHz optical isolation probe, standard with one 20x attenuator.
List price $5,499
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL PIA1020 at a glance
- Isolated probe with 200 MHz of bandwidth.
- Works with RIGOL MHO5000 Series, DHO5000 Series, DHO4000 Series, MSO8000 Series, DS70000 Series.
- Optically isolated probe: the measurement point is galvanically isolated from the scope.
- High common-mode rejection for fast floating signals such as high-side gate drives.
CH2RIGOL PIA1020 specifications
| Figure | PIA1020 | Source |
|---|---|---|
| Part number | PIA1020 | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 200 MHz | RIGOL product description |
| Probe type | Isolated | RIGOL product description |
| Works with | MHO5000 Series, DHO5000 Series, DHO4000 Series, MSO8000 Series, DS70000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 13 × 5 in | RIGOL price list |
| Shipping weight | 4 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference.
CH3In the box, and what it is for
What it's good for
- High-side gate-drive measurements in SiC and GaN power stages.
- Floating measurements with high common-mode voltage.
CH4Questions buyers ask
Which attenuators come with it?
RIGOL's descriptions list the standard attenuator tips: the PIA1020 includes a 20x attenuator; the PIA1050 and PIA1100 include one 50x and one 2000x attenuator.
Which instruments does the PIA1020 work with?
RIGOL lists it for the MHO5000 Series, DHO5000 Series, DHO4000 Series, MSO8000 Series, DS70000 Series. Tell us your model in the quote request and we'll confirm.
Can I order the PIA1020 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
