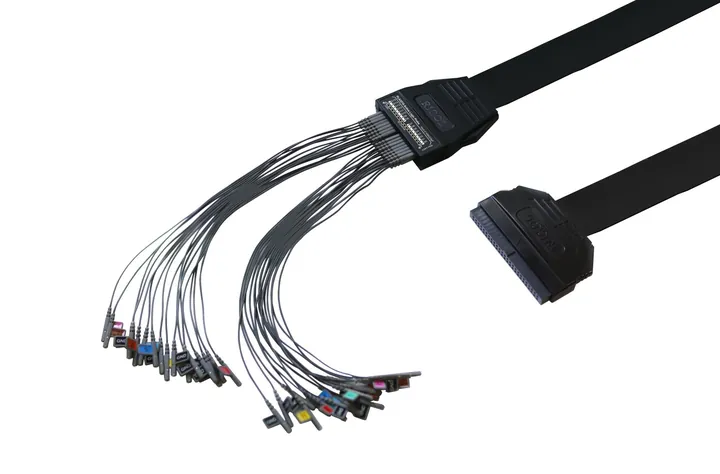

RIGOL PLA2216
Logic Analyzer Probe
The PLA2216 is RIGOL's 16-channel logic analyzer probe. It connects to the digital-channel input of RIGOL's MSO5000, DHO900 and MHO900 oscilloscopes and turns those scopes into 4 + 16-channel mixed-signal instruments, so you can trigger on and decode a bus while watching the analog signals.
List price $399
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL PLA2216 at a glance
- Adds 16 digital channels (two groups of 8) to supported RIGOL scopes.
- Adjustable threshold of ±15 V in 10 mV steps, set per group of 8.
- Light loading: about 101 kΩ and 8 pF per channel.
- Rated to ±40 V peak (CAT I) maximum input.
- RIGOL includes the cable, leads and grabber clips.
CH2RIGOL PLA2216 specifications
| Figure | PLA2216 | Source |
|---|---|---|
| Part number | PLA2216 | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 200 MHz | MHO900 datasheet (MHO900_DataSheet_EN) |
| Input impedance | about 101 kΩ, ≈8 pF | MHO900 datasheet (MHO900_DataSheet_EN) (digital channels) |
| Probe type | Active 16-channel logic analyzer probe | MSO5000 datasheet |
| Max. input voltage | ±40 V peak, CAT I | MHO900 datasheet (MHO900_DataSheet_EN) (digital channels) |
| Works with | MSO5000, DHO900 and MHO900 Series | MSO5000/DHO900/MHO900 datasheets, rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 10 × 8 × 3 in | RIGOL price list |
| Shipping weight | 2 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What's in the box
- PLA2216 logic probe
- Cable
- Test leads
- Grabber clips
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Decoding SPI, I2C, UART or parallel buses alongside analog signals.
- Triggering on a digital pattern while measuring an analog event.
CH4Questions buyers ask
Which RIGOL scopes does the PLA2216 work with?
RIGOL lists it for the MSO5000, DHO900 and MHO900 series, whose digital channels are built in and enabled by this probe.
Does it work with the DS1000Z?
No. The DS1000Z Plus uses the RPL1116 logic probe instead.
What logic levels can it read?
The threshold is adjustable from -15 V to +15 V in 10 mV steps (per group of 8 channels), so it covers 1.8 V to 5 V logic and beyond.
What comes in the box with the RIGOL PLA2216?
RIGOL lists these standard accessories: PLA2216 logic probe, Cable, Test leads, Grabber clips.
Which instruments does the PLA2216 work with?
RIGOL lists it for the MSO5000 Series, DHO900 Series, MHO900 Series. Tell us your model in the quote request and we'll confirm.
Can I order the PLA2216 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
