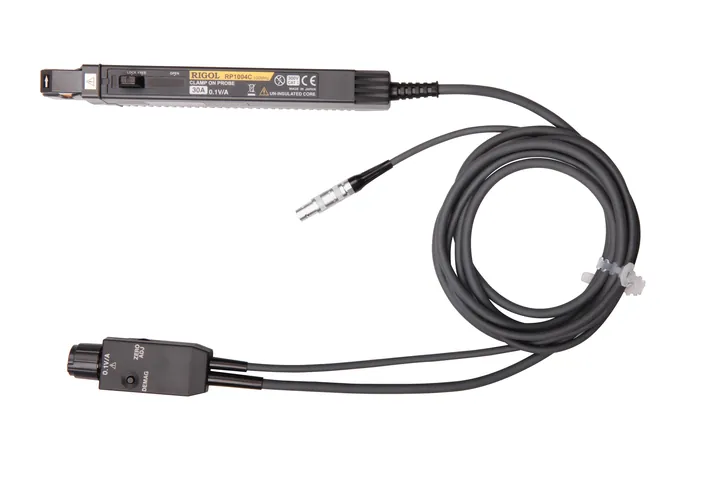

RIGOL RP1004C
100 MHz Current Probe
Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply.
List price $4,909
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RP1004C at a glance
- Current probe with 100 MHz of bandwidth.
- Works with RIGOL DS1000Z Series, DS2000A Series, MSO2000A Series, DS7000 / MSO7000 Series, MSO5000 Series, DHO5000 Series, MHO5000 Series, DHO1000 Series, DHO4000 Series, DHO800 Series, DHO900 Series, DS70000 Series, DS8000-R Series, DS80000 Series, DS9000 Series, MSO9000 Series, MHO2000 Series, MHO900 Series, MSO8000 Series.
- Clamp-on current probe: measure current without breaking the circuit.
- Shows current and voltage together on one scope for power measurements.
CH2RIGOL RP1004C specifications
| Figure | RP1004C | Source |
|---|---|---|
| Part number | RP1004C | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 100 MHz | RIGOL product description |
| Probe type | Current | RIGOL product description |
| Works with | DS1000Z Series, DS2000A Series, MSO2000A Series, DS7000 / MSO7000 Series, MSO5000 Series, DHO5000 Series, MHO5000 Series, DHO1000 Series, DHO4000 Series, DHO800 Series, DHO900 Series, DS70000 Series, DS8000-R Series, DS80000 Series, DS9000 Series, MSO9000 Series, MHO2000 Series, MHO900 Series, MSO8000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 14 × 10 × 4 in | RIGOL price list |
| Shipping weight | 3 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What it's good for
- Inrush, ripple and phase current in power supplies and motor drives.
- Power and efficiency measurements alongside a voltage probe.
CH4Questions buyers ask
Do RIGOL current probes need a separate power supply?
The RP1003C, RP1004C, RP1005C and RP1006C need RIGOL's RP1000P probe power supply. Add it to the same quote if you don't have one.
Which instruments does the RP1004C work with?
RIGOL lists it for the DS1000Z Series, DS2000A Series, MSO2000A Series, DS7000 / MSO7000 Series, MSO5000 Series, DHO5000 Series, MHO5000 Series, DHO1000 Series and more. Tell us your model in the quote request and we'll confirm.
Can I order the RP1004C with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the RP1004C
Works with
DS1000Z Series · DS2000A Series · MSO2000A Series · DS7000 / MSO7000 Series · MSO5000 Series · DHO5000 Series · MHO5000 Series · DHO1000 Series · DHO4000 Series · DHO800 Series · DHO900 Series · DS70000 Series · DS8000-R Series · DS80000 Series · DS9000 Series · MSO9000 Series · MHO2000 Series · MHO900 Series · MSO8000 Series
RIGOL lists it for: DS1, DS1Z, DS2, DS4, DS6, MSO1, MSO2, MSO4, DS7, MSO5. Not sure it fits your instrument? Ask in the quote request.
