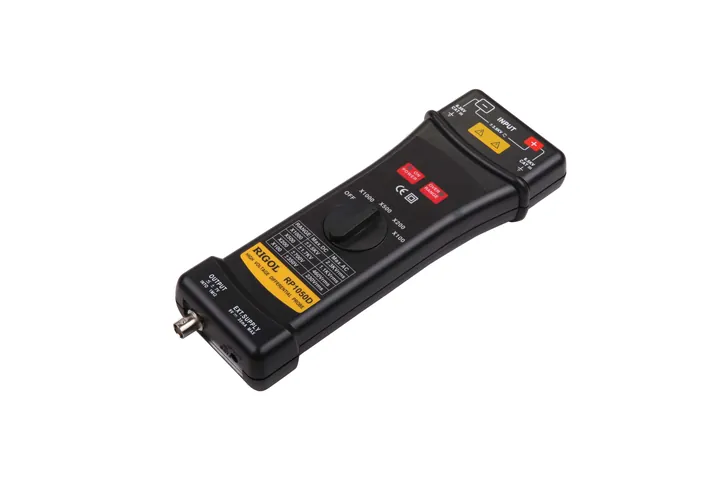

RIGOL RP1050D
50 MHz Differential Probe
High Voltage Differential Probe, DC-50 MHz, 7000 Vpp
List price $683
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RP1050D at a glance
- Differential probe with 50 MHz of bandwidth.
- Rated to 7000 Vpp (see RIGOL's datasheet for derating).
- Differential probe: measures between two points, neither of which needs to be ground.
- Safe way to look at floating nodes in mains-powered and switch-mode circuits.
CH2RIGOL RP1050D specifications
| Figure | RP1050D | Source |
|---|---|---|
| Part number | RP1050D | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 50 MHz | RIGOL product description |
| Probe type | Differential | RIGOL product description |
| Max. input voltage | 7000 Vpp | RIGOL product description |
| Works with | DS1000Z Series, DS2000A Series, MSO2000A Series, DS7000 / MSO7000 Series, MSO5000 Series, DHO800 Series, DHO900 Series, DS8000-R Series, MSO8000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 19 × 13 × 5 in | RIGOL price list |
| Shipping weight | 4 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What it's good for
- High-side gate and switch-node measurements in SMPS and inverters.
- Mains-powered circuits where a grounded probe would short a floating node.
CH4Questions buyers ask
Why not just use a passive probe?
A passive probe's ground clip is tied to the scope's earth. Clipping it to a floating node in a mains-powered circuit can short it out and damage equipment. A differential probe measures between two points without that connection.
Which instruments does the RP1050D work with?
RIGOL lists it for the DS1000Z Series, DS2000A Series, MSO2000A Series, DS7000 / MSO7000 Series, MSO5000 Series, DHO800 Series, DHO900 Series, DS8000-R Series and more. Tell us your model in the quote request and we'll confirm.
Can I order the RP1050D with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the RP1050D
Works with
DS1000Z Series · DS2000A Series · MSO2000A Series · DS7000 / MSO7000 Series · MSO5000 Series · DHO800 Series · DHO900 Series · DS8000-R Series · MSO8000 Series
RIGOL lists it for: DS1, DS1Z, DS2, DS4, DS6, MSO1, MSO2, MSO4, DS7, MSO5. Not sure it fits your instrument? Ask in the quote request.
