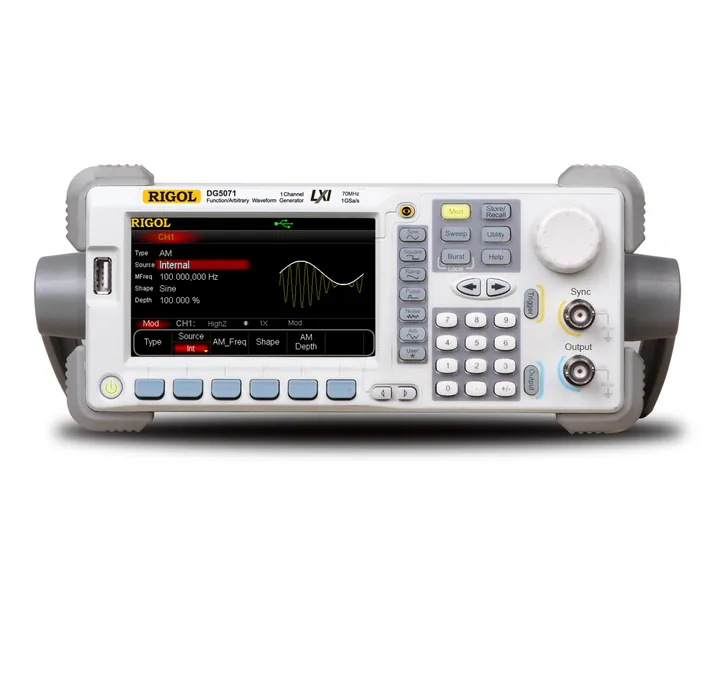

RIGOL DG5000 Series
8 models, list from $2,299. Compare them, add options and accessories, and request one quote for the lot.
The DG5000 is RIGOL's earlier high-performance arbitrary generator line, with 1- and 2-channel models at 70, 100, 250 and 350 MHz, 14-bit resolution and 128 Mpts of arbitrary memory.
For new multi-channel designs, also look at the DG5000 Pro, which offers up to 8 channels at 16 bits. The DG5000 remains available for systems standardized on it.
CH1Models
| Model | Max frequency | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DG5071 | 70 MHz | 1 | 70 MHz, 1 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $2,299 | |
| DG5072 | 70 MHz | 2 | 70 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $3,299 | |
| DG5101 | 100 MHz | 1 | 100 MHz, 1 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $4,699 | |
| DG5102 | 100 MHz | 2 | 100 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $5,599 | |
| DG5251 | 250 MHz | 1 | 250 MHz, 1 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $7,999 | |
| DG5252 | 250 MHz | 2 | 250 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $9,699 | |
| DG5351 | 350 MHz | 1 | 350 MHz, 1 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $11,699 | |
| DG5352 | 350 MHz | 2 | 350 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory | $15,599 |
CH2Options and accessories
Options & upgrades (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| FH-DG5000 | Frequency Hopping option for DG5000 series Function Generators | $2,499 |
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Station-adv | Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license | $115 |
Accessories (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RM-DG5000 | Rack Mounting Kit for a DG5000 Series Generator. | $249 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| PA1011 | 10W power amplifier for waveform generators | $451 | |
| DG-POD-A | 16 Channel Digital Signal Generator Module for DG5000 Series Arbitrary Function Generators | $924 |
Extended warranty (8)
| Part | Description | List price | Quote |
|---|---|---|---|
| DG5071 (R5-1) | DG5071 extended warranty, 2 years, option with new product | $186 | |
| DG5072 (R5-1) | DG5072 extended warranty, 2 years, option with new product | $273 | |
| DG5101 (R5-1) | DG5101 extended warranty, 2 years, option with new product | $381 | |
| DG5102 (R5-1) | DG5102 extended warranty, 2 years, option with new product | $457 | |
| DG5251 (R5-1) | DG5251 extended warranty, 2 years, option with new product | $653 | |
| DG5252 (R5-1) | DG5252 extended warranty, 2 years, option with new product | $797 | |
| DG5351 (R5-1) | DG5351 extended warranty, 2 years, option with new product | $957 | |
| DG5352 (R5-1) | DG5352 extended warranty, 2 years, option with new product | $1,277 |
