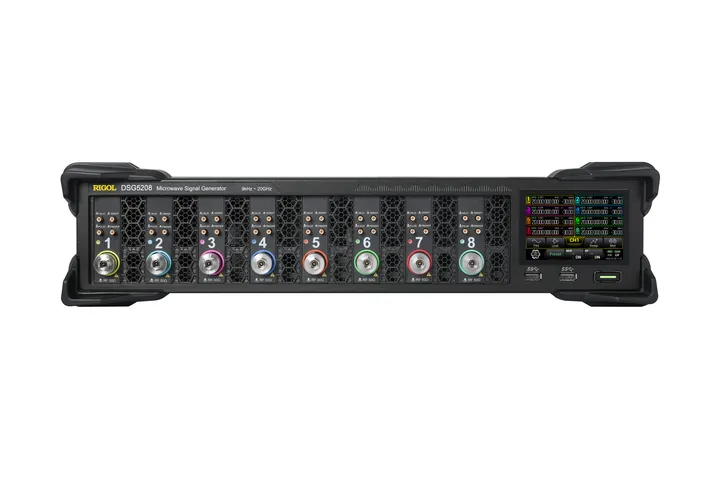

RIGOL DSG5000 Series
8 models, list from $26,399. Compare them, add options and accessories, and request one quote for the lot.
The DSG5000 is a multi-channel coherent microwave source: 2, 4, 6 or 8 phase-coherent outputs up to 12 GHz (DSG512x) or 20 GHz (DSG520x) in one instrument. Phase-coherent channels share a common reference, so their relative phase stays fixed, which is what beamforming, phased-array and MIMO test setups need.
RIGOL lists phase noise below -133 dBc/Hz for the series. Choosing a model comes down to the maximum frequency and the number of coherent channels your array or system needs.
CH1Models
| Model | Max frequency | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DSG5122 | 12 GHz | 2 | 12 GHz, 2 Channel Coherent Microwave RF Source | $26,399 | |
| DSG5202 | 20 GHz | 2 | 20 GHz, 2 Channel Coherent Microwave RF Source | $44,999 | |
| DSG5124 | 12 GHz | 4 | 12 GHz, 4 Channel Coherent Microwave RF Source | $50,699 | |
| DSG5126 | 12 GHz | 6 | 12 GHz, 6 Channel Coherent Microwave RF Source | $77,599 | |
| DSG5204 | 20 GHz | 4 | 20 GHz, 4 Channel Coherent Microwave RF Source | $88,399 | |
| DSG5128 | 12 GHz | 8 | 12 GHz, 8 Channel Coherent Microwave RF Source | $102,299 | |
| DSG5206 | 20 GHz | 6 | 20 GHz, 6 Channel Coherent Microwave RF Source | $123,999 | |
| DSG5208 | 20 GHz | 8 | 20 GHz, 8 Channel Coherent Microwave RF Source | $154,999 |
CH2Options and accessories
Options & upgrades (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG5000-PUG | Pulse Train Generator Option for the DSG5000 | $2,299 | |
| DSG5000-PUL | Pulse Modulation Option for the DSG5000 | $3,699 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM2031 | Rack mount kit for the DSG5000 Series RF signal sources | $399 | |
| OCXO-D08 | High stability timebase option for the DSG5000 Series RF signal sources | $1,399 | |
| DSG5000-AMD | Analog Modulation Option for the DSG5000 - Modulate amplitude, frequency, and phase | $2,699 |
Extended warranty (8)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG5122 (R5-1) | DSG5122 extended warranty, 2 years, option with new product | $3,933 | |
| DSG5124 (R5-1) | DSG5124 extended warranty, 2 years, option with new product | $7,893 | |
| DSG5126 (R5-1) | DSG5126 extended warranty, 2 years, option with new product | $11,826 | |
| DSG5128 (R5-1) | DSG5128 extended warranty, 2 years, option with new product | $15,759 | |
| DSG5202 (R5-1) | DSG5202 extended warranty, 2 years, option with new product | $6,579 | |
| DSG5204 (R5-1) | DSG5204 extended warranty, 2 years, option with new product | $13,131 | |
| DSG5206 (R5-1) | DSG5206 extended warranty, 2 years, option with new product | $19,692 | |
| DSG5208 (R5-1) | DSG5208 extended warranty, 2 years, option with new product | $26,253 |
