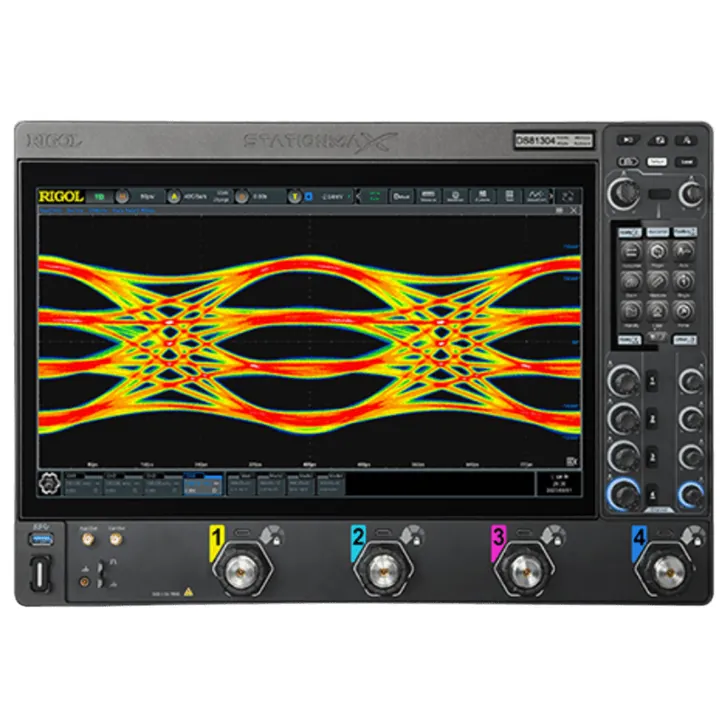

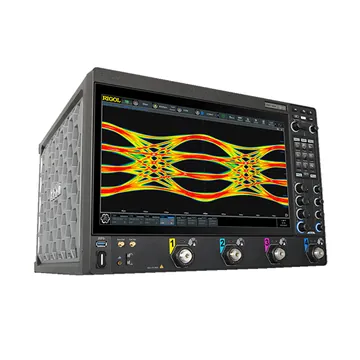

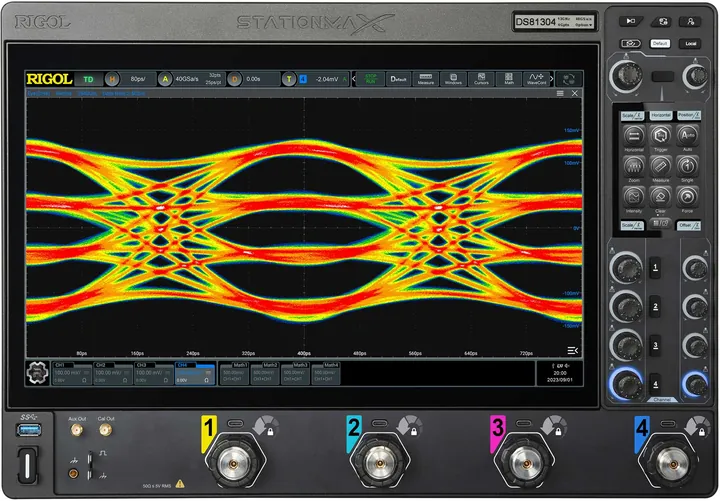

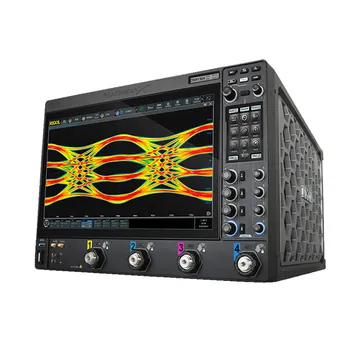

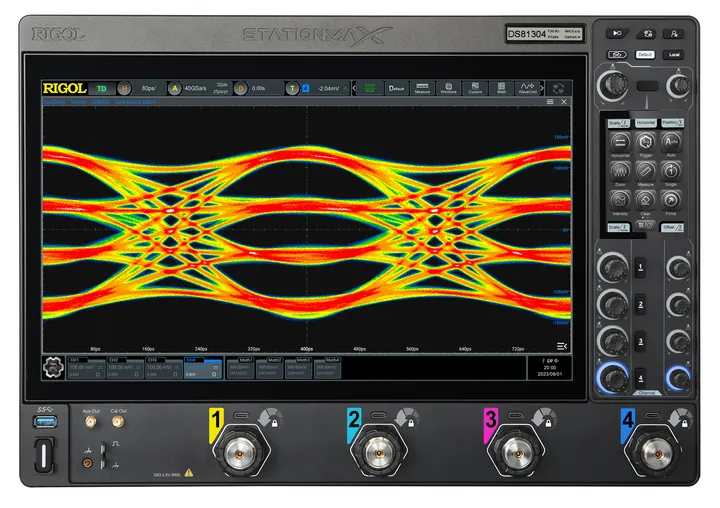

RIGOL DS80604
6 GHz 4-Channel Digital Oscilloscope · DS80000 Series
Digital Oscilloscope, 6GHz, 40GSa/s, 4CH
List price $70,799
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DS80604 at a glance
- 6 GHz of bandwidth on 4 analog channels.
- 8 to 16 bits adjustable vertical resolution for small signals riding on large ones.
- 6 to 13 GHz on 4 channels with 40 GSa/s sampling.
- Memory up to 2 Gpts (4 Gpts optional).
- Vertical resolution adjustable from 8 to 16 bits.
- Ethernet and USB compliance options.
CH2RIGOL DS80604 specifications
| Figure | DS80604 | Source |
|---|---|---|
| Part number | DS80604 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DS80000 Series | RIGOL price list |
| Bandwidth | 6 GHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 8 to 16 bits adjustable | DS80000 datasheet |
| Max. memory depth | 500 Mpts | rigolna.com |
| Max. real-time sample rate | 40 GSa/s | DS80000 datasheet |
| Max. waveform capture rate | 250 Kwfms/s | rigolna.com |
| Interfaces | USB Host & Device, LAN (LXI), HDMI, AUX out; Web Control | DS80000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 27 × 24 × 22 in | RIGOL price list |
| Shipping weight | 70 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- 2 BNC Adapter Input 50Ω
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Multi-gigabit serial link validation.
- RF and microwave time-domain analysis.
- Compliance pre-testing for Ethernet and USB.
CH4Questions buyers ask
What comes in the box with the RIGOL DS80604?
RIGOL lists these standard accessories: 2 BNC Adapter Input 50Ω, Calibration Certificate, Power Cord, USB Cable.
Can I add options to the DS80604 later?
Yes. RIGOL lists 16 options and software packages for the DS80000 Series (for example DS80000-10GENETC, DS80000-10MAUTOC, DS80000-10MINDUC, DS80000-AEROA). Add them to your quote now or ask about an upgrade later.
Do you ship the DS80604 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DS80604
Options and accessories for the DS80604
Options & upgrades (16)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS80000-AEROA | AERODecoding Option | $2,299 | |
| DS80000-AUDIOA | I2S Trigger and Decode | $2,299 | |
| DS80000-AUTOA | Automotive Bus Decode | $2,299 | |
| DS80000-USBC | USB 3.0 Compliance Test | $3,599 | |
| DS80000-DPHYC | D-PHY Compliance Test | $4,199 | |
| DS80000-10MAUTOC New | 10M-BaseT1S Automotive Ethernet Compliance | $5,409 | |
| DS80000-10MINDUC New | 10M Industrial Ethernet Compliance(T1L) | $5,409 | |
| DS80000-USB3C | USB 3.0 Compliance Test | $6,899 | |
| DS80000-AUTOENTC New | Automotive Enet Test | $7,219 | |
| DS80000-DDR4C New | DDR4 Compliance | $7,219 | |
| DS80000-ENETC | Ethernet Compliance Test | $9,039 | |
| DS80000-JITTA | Jitter and Eye Diagram | $9,039 | |
| DS80000-10GENETC New | 2.5G/5G/10G Ethernet Compliance | $10,849 | |
| DS80000-CPHYC New | MIPI C-PHY Compliance | $10,849 | |
| DS80000-PCIE3C New | PCIe Gen1/2/3 Compliance | $10,849 | |
| DS80000-RLU-40 | 4G Record length Option | $13,899 |
Probes (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PVA9100 | 10GHz Active Differential Voltage Probe | $12,799 | |
| PVA9130 | 13GHz Active Differential Voltage Probe | $15,199 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (23)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| TF-AENET-CME-STP | Automotive Ethernet Common-Mode Emission Board | $209 | |
| TF-AENET-MAT-STP New | Automotive Ethernet SMA-MATEnet adapter | $519 | |
| TF-AENET-MTD-STP New | Automotive Ethernet SMA-HMTD adapter | $519 | |
| TF-AENET-PAD-STP New | Car Ethernet welded adapter | $519 | |
| TF-USBH-STP | USB2.0 Host Compliance Test Fixture | $639 | |
| TF-ENET10G-RL-STP | return-loss test fixture | $879 | |
| TF-USBD-STP | USB2.0 Device Compliance Test Fixture | $1,189 | |
| TF-AENET-MB-STP New | Car Ethernet distribution board | $1,599 | |
| DS80000-EMBDA | Embedded Trigger&Decode | $2,299 | |
| TFB-AENET-MAT-STP | Car Ethernet MATEnet interface fixture kit | $2,329 | |
| TFB-AENET-MTD-STP | Car Ethernet H-MTD interface fixture kit | $2,329 | |
| High Impedance Adapter | HighImpedanceAdapter | $2,780 | |
| TF-ENET-STP | 10/100/1000M Ethernet Compliance Test Fixture | $3,269 | |
| TF-ENET10G-KIT-STP | 10G/5G/2.5G Ethernet Compliance Test Fixture KIT | $3,599 | |
| TF-USB30A-STP | USB-A/B Port Consistency Test Fixture | $4,689 | |
| TF-USB30C-STP | USB-C Port Consisitency Test Fixture | $6,139 | |
| TF-PCIE3-CLBX1X16-STP New | PCIE3 Compliance CLBX1X16 | $8,849 | |
| TF-PCIE3-CBB-STP New | PCIE3 Compliance CBB | $9,579 | |
| DS80000-RLU-20 | 2G Record length Option | $9,699 | |
| TF-PCIE3-CLBX4X8-STP New | PCIE Compliance CLBX4X8 | $9,759 | |
| TF-PCIE3-KIT-STP New | PCIE3 Compliance Test Fixture KIT | $27,519 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS80604 (R5-1) | DS80604 extended warranty, 2 years, option with new product | $6,372 |
