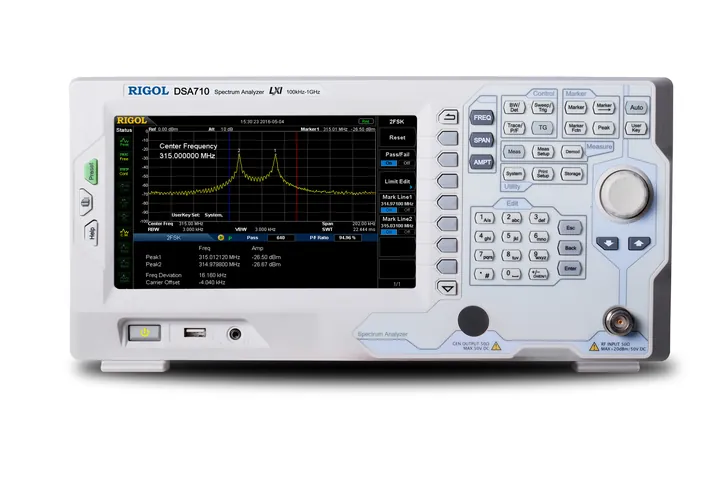

RIGOL DSA710
1 GHz Spectrum Analyzer · DSA700 Series
Spectrum Analyzer, 100kHz to 1GHz
List price $799
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DSA710 at a glance
- Measures up to 1 GHz.
- Displayed average noise level down to -130 dBm (RIGOL figure) for weak-signal work.
- 100 kHz to 500 MHz (DSA705) or 1 GHz (DSA710).
- -130 dBm DANL (typ.) and 100 Hz minimum RBW.
- 8-inch WVGA display; LAN (LXI), USB, GPIB optional.
- EMI filter and quasi-peak detector kit available as an option.
CH2RIGOL DSA710 specifications
| Figure | DSA710 | Source |
|---|---|---|
| Part number | DSA710 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DSA700 Series | RIGOL price list |
| Display | 8-inch WVGA (800×480) | DSA700 datasheet |
| Interfaces | LAN (LXI), USB Host & Device; GPIB optional | DSA700 datasheet |
| Frequency range | up to 1 GHz | RIGOL product description |
| DANL | -130 dBm | rigolna.com |
| Phase noise | -80 dBc/Hz | rigolna.com |
| Resolution bandwidth | 100 Hz | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18 × 11 × 12 in | RIGOL price list |
| Shipping weight | 14 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- PreAmplifier
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Teaching RF fundamentals and spectrum measurements.
- Checking oscillators, harmonics and spurs on low-frequency RF designs.
- Basic EMI pre-scans with the EMI option.
CH4Questions buyers ask
What comes in the box with the RIGOL DSA710?
RIGOL lists these standard accessories: PreAmplifier, Calibration Certificate, Power Cord.
Can I add options to the DSA710 later?
Yes. RIGOL lists 5 options and software packages for the DSA700 Series (for example S1210, SSC-DSA, Ultra Spectrum, AMK-DSA800). Add them to your quote now or ask about an upgrade later.
Do you ship the DSA710 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DSA710
Options and accessories for the DSA710
Options & upgrades (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| SSC-DSA | 2FSK Spectrum measurement and analysis | $209 | |
| AMK-DSA800 | Advanced Measurement Kit(DSA815Only) | $577 | |
| EMI-DSA800 | EMI Filter & Quasi-Peak Detector Kit(DSA815 Only) | $692 |
Software (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1210 | EMI Pre-Compliance Software | $499 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (9)
| Part | Description | List price | Quote |
|---|---|---|---|
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSA710 (R5-1) | DSA710 extended warranty, 2 years, option with new product | $72 |
