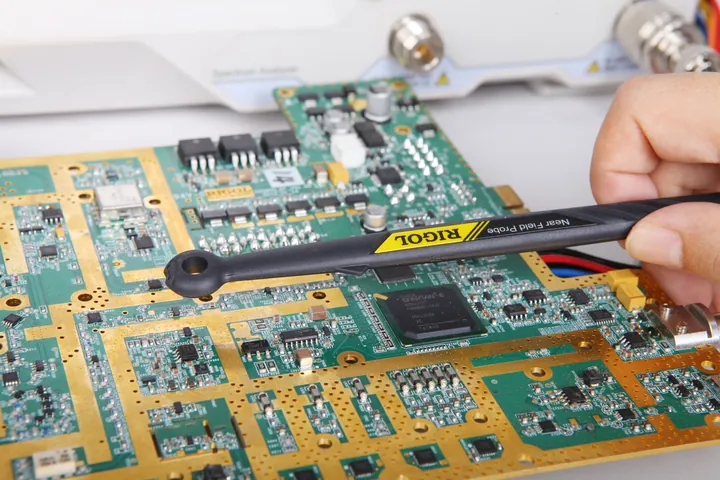

RIGOL NFP-3
30 MHz Near-Field Probe
Near Field Probe, Requency Range: 30MHz to 3GHz
List price $499
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL NFP-3 at a glance
- Near-Field probe with 30 MHz of bandwidth.
- Works with RIGOL DSA800 Series, DSA700 Series, DSG3000B Series, DSG800 Series, RSA5000 Series, RSA3000 Series, DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series.
- Near-field probe kit for locating EMI sources on a board.
- Pairs with a RIGOL spectrum analyzer for EMC pre-compliance debugging.
CH2RIGOL NFP-3 specifications
| Figure | NFP-3 | Source |
|---|---|---|
| Part number | NFP-3 | RIGOL |
| Brand | RIGOL | RIGOL |
| Bandwidth | 30 MHz | RIGOL product description |
| Probe type | Near-Field | RIGOL product description |
| Works with | DSA800 Series, DSA700 Series, DSG3000B Series, DSG800 Series, RSA5000 Series, RSA3000 Series, DS7000 / MSO7000 Series, DS8000-R Series, MSO8000 Series | RIGOL compatibility list |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 14 × 10 × 4 in | RIGOL price list |
| Shipping weight | 3 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: User manual.
CH3In the box, and what it is for
What it's good for
- Finding which trace or component radiates before an EMC test.
- Checking the effect of a fix (shielding, filtering) on emissions.
CH4Questions buyers ask
What do I connect it to?
A spectrum analyzer. RIGOL lists it for its DSA and RSA analyzers; the analyzer shows the emissions as you move the probe over the board.
Which instruments does the NFP-3 work with?
RIGOL lists it for the DSA800 Series, DSA700 Series, DSG3000B Series, DSG800 Series, RSA5000 Series, RSA3000 Series, DS7000 / MSO7000 Series, DS8000-R Series and more. Tell us your model in the quote request and we'll confirm.
Can I order the NFP-3 with an oscilloscope?
Yes. Add both to your quote list and we quote them together.
CH1Request a quote for the NFP-3
Works with
DSA800 Series · DSA700 Series · DSG3000B Series · DSG800 Series · RSA5000 Series · RSA3000 Series · DS7000 / MSO7000 Series · DS8000-R Series · MSO8000 Series
