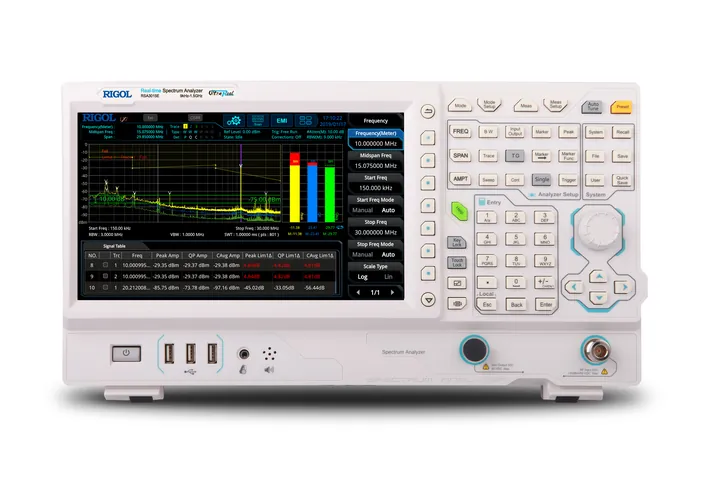

RIGOL RSA3000 Series
14 models, list from $2,099. Compare them, add options and accessories, and request one quote for the lot.
The RSA3000 is RIGOL's real-time spectrum analyzer for the mid-range bench, covering 1.5, 3.0 or 4.5 GHz. Its Ultra-Real engine captures 10 MHz of real-time bandwidth as standard (40 MHz as an option on many models), so short and intermittent signals that a swept analyzer would miss show up in density and spectrogram views.
It also works as a conventional swept analyzer, with DANL below -161 dBm (typical) and a 1 Hz minimum RBW per RIGOL's datasheet. The -TG models add a tracking generator, and the N models add vector network analysis. EMI pre-compliance is available as an option. A 10.1-inch capacitive touch screen with gesture support and USB, LAN and HDMI round it out.
CH1Models
| Model | Max frequency | Description | List price | Quote |
|---|---|---|---|---|
| RSA3015E | 1.5 GHz | 1.5 GHz Real-Time Spectrum Analyzer w/10MHz RTBW | $2,099 | |
| RSA3015E-TG | 1.5 GHz | 1.5 GHz Real-Time Spectrum Analyzer w/10MHz RTBW and Tracking Generator | $2,299 | |
| RSA3015N | 1.5 GHz | 1.5 GHz Real-Time Spectrum Analyzer w/10MHz RTBW - VNA Capable | $2,699 | |
| RSA3015N-OCXO | 1.5 GHz | RSA3000 Series 1.5 GHz Real-Time Spectrum Analyzer with Tracking Generator and built in Vector Network Analysis mode for S11, S21, and DTF measurements equipped with OCXO frequency timebase | $3,538 | |
| RSA3030E | 3 GHz | 3.0 GHz Real-Time Spectrum Analyzer w/10MHz RTBW | $3,999 | |
| RSA3030E-TG | 3 GHz | 3.0 GHz Real-Time Spectrum Analyzer w/10MHz RTBW and Tracking Generator | $4,399 | |
| RSA3030 | 3 GHz | 3.0 GHz Real-Time Spectrum Analyzer w/10MHz RTBW (upgradable to 40MHz) | $4,699 | |
| RSA3030N | 3 GHz | 3.0 GHz Real-Time Spectrum Analyzer w/10MHz RTBW - VNA Capable | $4,899 | |
| RSA3030N-OCXO | 3 GHz | RSA3000 Series 3 GHz Real-Time Spectrum Analyzer with Tracking Generator and built in Vector Network Analysis mode for S11, S21, and DTF measurements equipped with OCXO frequency timebase | $5,738 | |
| RSA3030-TG | 3 GHz | 3.0GHz Real-Time Spectrum Analyzer w/10MHz RTBW (upgradable to 40MHz) and Tracking Generator | $5,899 | |
| RSA3045 | 4.5 GHz | 4.5 GHz Real-Time Spectrum Analyzer | $5,899 | |
| RSA3045N | 4.5 GHz | 4.5 GHz Real-Time Spectrum Analyzer - w/10MHz RTBW - VNA Capable | $6,799 | |
| RSA3045-TG | 4.5 GHz | 4.5 GHz Real-Time Spectrum Analyzer - with Tracking Generator | $6,999 | |
| RSA3045N-OCXO | 4.5 GHz | RSA3000 Series 4.5 GHz Real-Time Spectrum Analyzer with Tracking Generator and built in Vector Network Analysis mode for S11, S21, and DTF measurements equipped with OCXO frequency timebase | $7,638 |
CH2Options and accessories
Options & upgrades (12)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA3000-PA | Pre-Amplifier for the RSA3000 | $279 | |
| RSA3000E-PA | Pre-Amplifier for the RSA3000E | $329 | |
| RSA3000-BW1 | Resolution Bandwidth Upgrade to 1Hz | $439 | |
| RSA3000E-EMC | EMI Filter and Detector for the RSA3000E Series | $439 | |
| RSA3000-EMC | EMI Filter and Detector for the RSA3000 | $549 | |
| RSA3000-AMK | Advanced Measurement Kit for the RSA3000 | $659 | |
| RSA3000E-AMK | Advanced Measurement Kit for the RSA3000E | $659 | |
| RSA3000E-ASK/FSK | ASK/FSK Demodulation for RSA3000E | $659 | |
| RSA3000-B25 | Real-time analysis BW Upgrade to 25MHz | $989 | |
| RSA3000E-EMI | EMI Analysis Mode Option for the RSA3000E | $989 | |
| RSA3000-EMI | EMI Analysis Mode Option for the RSA3000 | $999 | |
| RSA3000-B40 | Real-time analysis BW Upgrade to 40MHz | $1,599 |
Software (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1220 | ASK-FSK Demodulation Analysis Software | $399 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (15)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RM6041 | Rack Mount Kit for RSA5, RSA3, DS7000, MSO8000 | $309 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| CK106E | Basic Calibration Kit for RSA5/RSA3 VNA | $349 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| VB1032 | VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB | $659 | |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. | $734 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 | |
| CK106A | Precision Calibration Kit for RSA5/RSA3 VNA | $999 |
Extended warranty (11)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA3015E (R5-1) | RSA3015E extended warranty, 2 years, option with new product | $162 | |
| RSA3015E-TG (R5-1) | RSA3015E-TG extended warranty, 2 years, option with new product | $180 | |
| RSA3015N (R5-1) | RSA3015N extended warranty, 2 years, option with new product | $207 | |
| RSA3030 (R5-1) | RSA3030 extended warranty, 2 years, option with new product | $360 | |
| RSA3030-TG (R5-1) | RSA3030-TG extended warranty, 2 years, option with new product | $450 | |
| RSA3030E (R5-1) | RSA3030E extended warranty, 2 years, option with new product | $297 | |
| RSA3030E-TG (R5-1) | RSA3030E-TG extended warranty, 2 years, option with new product | $333 | |
| RSA3030N (R5-1) | RSA3030N extended warranty, 2 years, option with new product | $360 | |
| RSA3045 (R5-1) | RSA3045 extended warranty, 2 years, option with new product | $450 | |
| RSA3045-TG (R5-1) | RSA3045-TG extended warranty, 2 years, option with new product | $558 | |
| RSA3045N (R5-1) | RSA3045N extended warranty, 2 years, option with new product | $540 |
