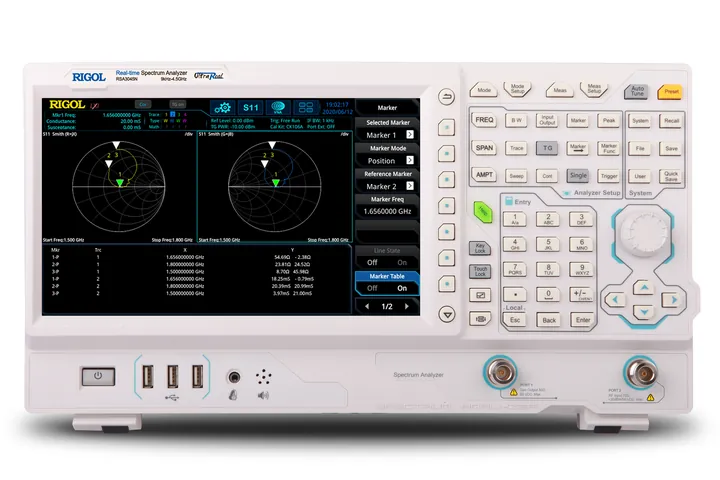

RIGOL RSA3045N
4.5 GHz Real-Time Spectrum Analyzer · RSA3000 Series
4.5 GHz Real-Time Spectrum Analyzer - w/10MHz RTBW - VNA Capable
List price $6,799
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RSA3045N at a glance
- Measures 4.50 GHz.
- Tracking generator built in, for filter and cable response sweeps.
- Real-time analysis: 10 MHz standard, up to 40 MHz as an option on many models.
- 1.5, 3.0 or 4.5 GHz with DANL below -161 dBm (typ.).
- -TG models add a tracking generator; N models add VNA mode.
- 10.1-inch multi-touch screen; USB, LAN, HDMI.
CH2RIGOL RSA3045N specifications
| Figure | RSA3045N | Source |
|---|---|---|
| Part number | RSA3045N | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | RSA3000 Series | RIGOL price list |
| Display | 10.1-inch capacitive multi-touch | RSA3000 datasheet |
| Interfaces | USB, LAN, HDMI | RSA3000 datasheet |
| Frequency range | 4.50 GHz | rigolna.com |
| Tracking generator | Yes | rigolna.com |
| Real-time bandwidth | 10 MHz; 40MHz (option) | rigolna.com |
| EMI pre-compliance | Option | rigolna.com |
| Vector network analysis | Yes | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 20 × 16 × 14 in | RIGOL price list |
| Shipping weight | 25 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Instrument Cover
- USB Cable
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Finding intermittent interference and hopping signals.
- IoT and short-range radio debugging (Bluetooth, Wi-Fi bands).
- Filter and antenna measurements on the N/TG models.
CH4Questions buyers ask
What do the E, N and -TG versions mean?
RIGOL uses -TG for a built-in tracking generator and N for models that also run vector network analysis. E models are value versions. The model table on each page shows exactly what's included.
What comes in the box with the RIGOL RSA3045N?
RIGOL lists these standard accessories: Instrument Cover, USB Cable, Calibration Certificate, Power Cord.
Can I add options to the RSA3045N later?
Yes. RIGOL lists 14 options and software packages for the RSA3000 Series (for example RSA3000-AMK, RSA3000-B25, RSA3000-B40, RSA3000-BW1). Add them to your quote now or ask about an upgrade later.
Do you ship the RSA3045N outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the RSA3045N
Options and accessories for the RSA3045N
Options & upgrades (12)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA3000-PA | Pre-Amplifier for the RSA3000 | $279 | |
| RSA3000E-PA | Pre-Amplifier for the RSA3000E | $329 | |
| RSA3000-BW1 | Resolution Bandwidth Upgrade to 1Hz | $439 | |
| RSA3000E-EMC | EMI Filter and Detector for the RSA3000E Series | $439 | |
| RSA3000-EMC | EMI Filter and Detector for the RSA3000 | $549 | |
| RSA3000-AMK | Advanced Measurement Kit for the RSA3000 | $659 | |
| RSA3000E-AMK | Advanced Measurement Kit for the RSA3000E | $659 | |
| RSA3000E-ASK/FSK | ASK/FSK Demodulation for RSA3000E | $659 | |
| RSA3000-B25 | Real-time analysis BW Upgrade to 25MHz | $989 | |
| RSA3000E-EMI | EMI Analysis Mode Option for the RSA3000E | $989 | |
| RSA3000-EMI | EMI Analysis Mode Option for the RSA3000 | $999 | |
| RSA3000-B40 | Real-time analysis BW Upgrade to 40MHz | $1,599 |
Software (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1220 | ASK-FSK Demodulation Analysis Software | $399 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (15)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RM6041 | Rack Mount Kit for RSA5, RSA3, DS7000, MSO8000 | $309 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| CK106E | Basic Calibration Kit for RSA5/RSA3 VNA | $349 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| VB1032 | VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB | $659 | |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. | $734 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 | |
| CK106A | Precision Calibration Kit for RSA5/RSA3 VNA | $999 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA3045N (R5-1) | RSA3045N extended warranty, 2 years, option with new product | $540 |
