RIGOL DSG800 Series
10 models, list from $2,099. Compare them, add options and accessories, and request one quote for the lot.

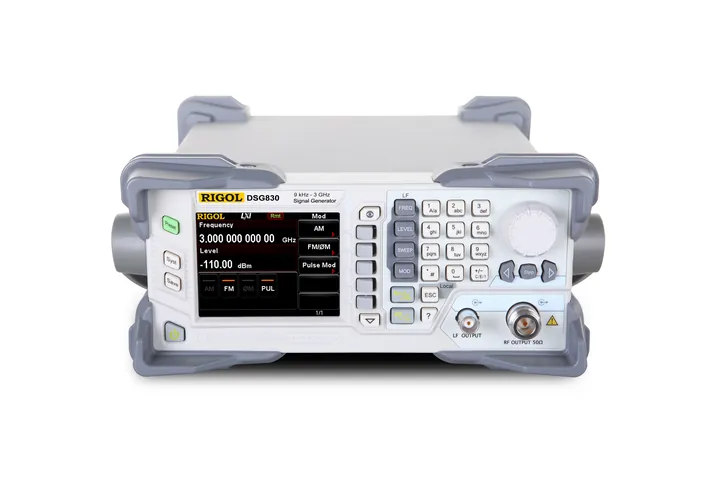

The DSG800 is RIGOL's compact, economical RF signal generator, covering 9 kHz to 1.5, 2.1, 3 or 3.6 GHz depending on the model. RIGOL rates phase noise at -112 dBc/Hz typical, output power up to +20 dBm typical and amplitude accuracy within 0.5 dB typical, with AM, FM and phase modulation and flexible frequency and amplitude sweeps.
The A models (DSG821A, DSG836A) add IQ modulation for digital-modulation work, and the -OCXO versions add a high-stability timebase. An electronic attenuator avoids the wear of mechanical step attenuators, and the small case takes little bench or rack space.
CH1Models
| Model | Max frequency | Description | List price | Quote |
|---|---|---|---|---|
| DSG815 | 1.5 GHz | RF Signal Source from 9kHz-1.5GHz | $2,099 | |
| DSG821 | 2.1 GHz | RF Signal Source from 9kHz-2.1GHz | $2,299 | |
| DSG821-OCXO | 2.1 GHz | 2.1 GHz RF Signal Source with OCXO clock source installed | $2,960 | |
| DSG821A | 2.1 GHz | RF Signal Source from 9kHz-2.1GHz with IQ modulation | $3,699 | |
| DSG836 | 3 GHz | RF Signal Source from 9kHz-3GHz | $3,699 | |
| DSG830 | 3 GHz | RF Signal Source from 9kHz-3GHz | $3,779 | |
| DSG821A-OCXO | 2.1 GHz | 2.1 GHz RF Signal Source with IQ modulation and OCXO clock source installed | $4,360 | |
| DSG836-OCXO | 3.6 GHz | 3.6 GHz RF Signal Source with OCXO clock source installed | $4,360 | |
| DSG836A | 3 GHz | RF Signal Source from 9kHz-3GHz with IQ modulation | $5,199 | |
| DSG836A-OCXO | 3.6 GHz | 3.6 GHz RF Signal Source with IQ modulation and OCXO clock source installed | $5,860 |
CH2Options and accessories
Options & upgrades (2)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG800-PUM | Pulse modulation option for the DSG800 Series RF signal sources | $629 | |
| DSG800-PUG | Pulse Train Generator option for the DSG800 Series RF signal sources. Includes DSG800-PUM license automatically. | $818 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (8)
| Part | Description | List price | Quote |
|---|---|---|---|
| RM-1-DG1000Z | Rack Mounting Kit for one DG1000Z | $100 | |
| RM-2-DG1000Z | Rack Mounting Kit for two DG1000Z | $134 | |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| DSG815 (R5-1) | DSG815 extended warranty, 2 years, option with new product | $189 | |
| DSG821 (R5-1) | DSG821 extended warranty, 2 years, option with new product | $207 | |
| DSG821A (R5-1) | DSG821A extended warranty, 2 years, option with new product | $333 | |
| DSG830 (R5-1) | DSG830 extended warranty, 2 years, option with new product | $341 | |
| DSG836 (R5-1) | DSG836 extended warranty, 2 years, option with new product | $333 | |
| DSG836A (R5-1) | DSG836A extended warranty, 2 years, option with new product | $468 |
