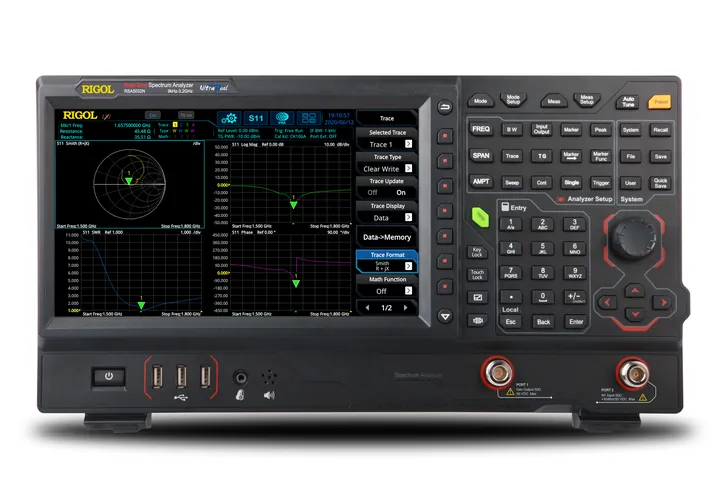

RIGOL RSA5000 Series
8 models, list from $5,999. Compare them, add options and accessories, and request one quote for the lot.
The RSA5000 is RIGOL's higher-performance real-time spectrum analyzer at 3.2 or 6.5 GHz. RIGOL rates DANL below -165 dBm (typical), phase noise below -108 dBc/Hz (typical) and level uncertainty under 0.8 dB, with 25 MHz of real-time bandwidth standard and 40 MHz as an option.
Like the RSA3000 it offers density and spectrogram displays, trigger masks and multiple trigger modes, plus vector signal analysis and EMI applications as options. The -TG models add a tracking generator and the N models add vector network analysis. It has a 10.1-inch capacitive touch screen and USB, LAN and HDMI.
CH1Models
| Model | Max frequency | Description | List price | Quote |
|---|---|---|---|---|
| RSA5032N | 3.2 GHz | 3.2GHz Real-Time Spectrum Analyzer with TG - VNA Capable | $5,999 | |
| RSA5032N-OCXO | 3.2 GHz | RSA5000 Series 3.2 GHz Real-Time Spectrum Analyzer with Tracking Generator and built in Vector Network Analysis mode for S11, S21, and DTF measurements equipped with OCXO frequency timebase | $6,838 | |
| RSA5032 | 3.2 GHz | 3.2GHz Real-Time Spectrum Analyzer | $6,999 | |
| RSA5032-TG | 3.2 GHz | 3.2GHz Real-Time Spectrum Analyzer with TG | $7,999 | |
| RSA5065N | 6.5 GHz | 6.5GHs Real-Time Spectrum Analyzer with TG - VNA Capable | $8,399 | |
| RSA5065N-OCXO | 6.5 GHz | RSA5000 Series 6.5 GHz Real-Time Spectrum Analyzer with Tracking Generator and built in Vector Network Analysis mode for S11, S21, and DTF measurements equipped with OCXO frequency timebase | $9,238 | |
| RSA5065 | 6.5 GHz | 6.5GHs Real-Time Spectrum Analyzer | $9,399 | |
| RSA5065-TG | 6.5 GHz | 6.5GHs Real-Time Spectrum Analyzer with TG | $10,499 |
CH2Options and accessories
Options & upgrades (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA5000-PA | Pre-amplifier | $419 | |
| RSA5000-AMK | Advanced Measurement Kit | $629 | |
| RSA5000-EMI | EMI Analysis Mode Option for the RSA5000 | $999 | |
| RSA5000-B40 | Realtime Bandwidth Upgrade to 40MHz | $1,599 | |
| RSA5000-VSA | Vector Signal Analysis Mode Option for RSA5000 | $2,099 |
Software (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1220 | ASK-FSK Demodulation Analysis Software | $399 | |
| S1210 | EMI Pre-Compliance Software | $499 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (15)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RM6041 | Rack Mount Kit for RSA5, RSA3, DS7000, MSO8000 | $309 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| CK106E | Basic Calibration Kit for RSA5/RSA3 VNA | $349 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| VB1032 | VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB | $659 | |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. | $734 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 | |
| CK106A | Precision Calibration Kit for RSA5/RSA3 VNA | $999 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA5032 (R5-1) | RSA5032 extended warranty, 2 years, option with new product | $630 | |
| RSA5032-TG (R5-1) | RSA5032-TG extended warranty, 2 years, option with new product | $720 | |
| RSA5032N (R5-1) | RSA5032N extended warranty, 2 years, option with new product | $540 | |
| RSA5065 (R5-1) | RSA5065 extended warranty, 2 years, option with new product | $810 | |
| RSA5065-TG (R5-1) | RSA5065-TG extended warranty, 2 years, option with new product | $900 | |
| RSA5065N (R5-1) | RSA5065N extended warranty, 2 years, option with new product | $720 |
