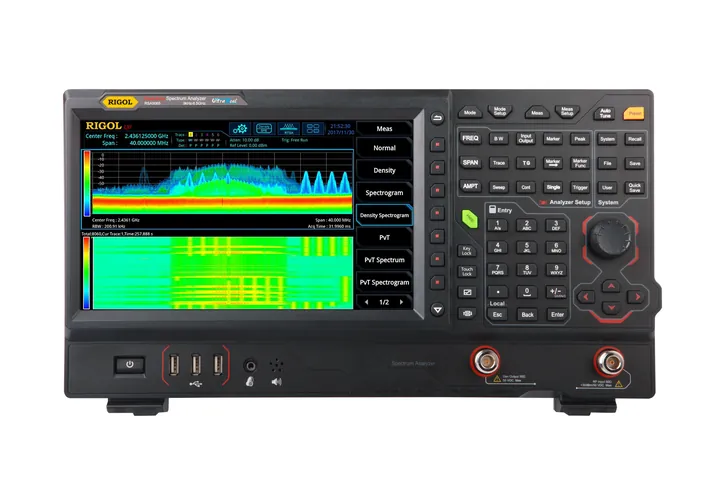

RIGOL RSA5065-TG
6.5 GHz Real-Time Spectrum Analyzer with Tracking Generator · RSA5000 Series
6.5GHs Real-Time Spectrum Analyzer with TG
List price $10,499
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL RSA5065-TG at a glance
- Measures 6.50 GHz.
- Tracking generator built in, for filter and cable response sweeps.
- 3.2 or 6.5 GHz; DANL below -165 dBm (typ.).
- 25 MHz real-time bandwidth standard, 40 MHz optional.
- Vector signal analysis and EMI applications available.
- -TG and N models add a tracking generator and VNA mode.
CH2RIGOL RSA5065-TG specifications
| Figure | RSA5065-TG | Source |
|---|---|---|
| Part number | RSA5065-TG | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | RSA5000 Series | RIGOL price list |
| Display | 10.1-inch capacitive multi-touch | RSA5000 datasheet |
| Interfaces | USB, LAN, HDMI | RSA5000 datasheet |
| Frequency range | 6.50 GHz | rigolna.com |
| Tracking generator | Yes | rigolna.com |
| Real-time bandwidth | 25 MHz (40 MHz option) | rigolna.com |
| EMI pre-compliance | Option | rigolna.com |
| Vector network analysis | No | rigolna.com |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 20 × 16 × 14 in | RIGOL price list |
| Shipping weight | 25 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Instrument Cover
- USB Cable
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Wireless and modulated-signal analysis with the VSA option.
- EMI pre-compliance in the lab.
- Capturing transient and frequency-hopping signals in real time.
CH4Questions buyers ask
What comes in the box with the RIGOL RSA5065-TG?
RIGOL lists these standard accessories: Instrument Cover, USB Cable, Calibration Certificate, Power Cord.
Can I add options to the RSA5065-TG later?
Yes. RIGOL lists 8 options and software packages for the RSA5000 Series (for example RSA5000-AMK, RSA5000-B40, RSA5000-EMI, RSA5000-PA). Add them to your quote now or ask about an upgrade later.
Do you ship the RSA5065-TG outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the RSA5065-TG
Options and accessories for the RSA5065-TG
Options & upgrades (5)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA5000-PA | Pre-amplifier | $419 | |
| RSA5000-AMK | Advanced Measurement Kit | $629 | |
| RSA5000-EMI | EMI Analysis Mode Option for the RSA5000 | $999 | |
| RSA5000-B40 | Realtime Bandwidth Upgrade to 40MHz | $1,599 | |
| RSA5000-VSA | Vector Signal Analysis Mode Option for RSA5000 | $2,099 |
Software (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Spectrum | Software for the DSA1000 and DSA1000A series spectrum analyzers to be used within the UltraSigma package | $266 | |
| S1220 | ASK-FSK Demodulation Analysis Software | $399 | |
| S1210 | EMI Pre-Compliance Software | $499 |
Probes (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| NFP-3 | Near Field Probe, Requency Range: 30MHz to 3GHz | $499 |
Accessories (15)
| Part | Description | List price | Quote |
|---|---|---|---|
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | $199 | |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | $199 | |
| ATT03301H | 30dB High Power Attenuator, Max Power 100W | $230 | |
| RM6041 | Rack Mount Kit for RSA5, RSA3, DS7000, MSO8000 | $309 | |
| RF Adaptor Kit | Kit Includes: N(F)-N(F) Adaptor (1pcs), N(M)-N(M) Adaptor (1pcs), N(M)-SMA(F) Adaptor (2pcs), N(M)-BNC(F) Adaptor (2pcs), SMA(F)-SMA(F) Adaptor (1pcs), SMA(M)-SMA(M) Adaptor (1pcs), BNC T Type Adaptor (1pcs), 50 Ω SMA Load (1pcs), 50 Ω BNC Impedance Adapter (1pcs) | $314 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| CK106E | Basic Calibration Kit for RSA5/RSA3 VNA | $349 | |
| RF CATV Kit | Kit Includes 50 Ω to 75 Ω Adaptor (2pcs) | $419 | |
| RF Attenuator Kit | Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) | $524 | |
| VB1032 | VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included Frequency range: 1 MHz - 3.2 GHz, Typical Directivity: ≥ 30 dB | $659 | |
| VB1080 | VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080's range is from 2-8 GHz. | $734 | |
| DSA Utility Kit | DSA Accessories Package including：N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, Antenna 2（900MHz/1.8GHz）, Antenna 2（2.4GHz） | $831 | |
| RX1000 | RF Demo Kit (Receiver) | $902 | |
| TX1000 | RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier. | $993 | |
| CK106A | Precision Calibration Kit for RSA5/RSA3 VNA | $999 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| RSA5065-TG (R5-1) | RSA5065-TG extended warranty, 2 years, option with new product | $900 |
Other models
RSA5032N · RSA5032N-OCXO · RSA5032 · RSA5032-TG · RSA5065N · RSA5065N-OCXO · RSA5065 · compare the RSA5000 Series
