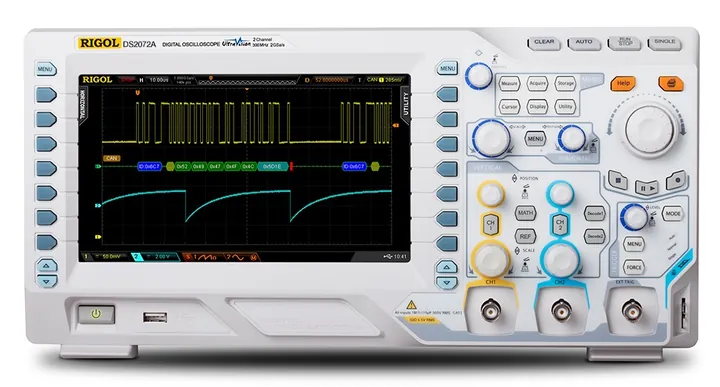

RIGOL DS2000A Series
3 models, list from $749. Compare them, add options and accessories, and request one quote for the lot.
The DS2000A is a 2-channel scope with a standard 50 Ω input next to the usual 1 MΩ, which saves an external terminator when you're measuring RF or matched lines. It samples at 2 GSa/s with 14 Mpts of memory (56 Mpts optional) and RIGOL's UltraVision engine, which captures up to 52,000 waveforms a second and records up to 65,000 frames for playback.
Bandwidths run 100, 200 and 300 MHz. Choose the DS2000A when two channels are enough and you want the low-noise front end and the switchable 50 Ω input; choose the MSO2000A if you also need 16 digital channels.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| DS2102A | 100 MHz | 2 | 100 MHz, 2 Channel Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $749 | |
| DS2202A | 200 MHz | 2 | 200 MHz, 2 Channel Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $789 | |
| DS2302A | 300 MHz | 2 | 300 MHz, 2 Channel Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $949 |
CH2Options and accessories
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| UPA-DS | Power Analysis Software for DS2, MSO2, DS4, & MSO4 series oscilloscopes | $880 |
Probes (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP2350 | PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode -- Replaces the RP3300A | $47 | |
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 |
Accessories (7)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RPA246 | Power analysis phase difference correction jig | $59 | |
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RM-DS2000 | Rack Mount Kit for the DS2000 and DS2000A Series Oscilloscope. | $469 |
Extended warranty (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS2102A (R5-1) | DS2102A extended warranty, 2 years, option with new product | $57 | |
| DS2202A (R5-1) | DS2202A extended warranty, 2 years, option with new product | $60 | |
| DS2302A (R5-1) | DS2302A extended warranty, 2 years, option with new product | $72 |
