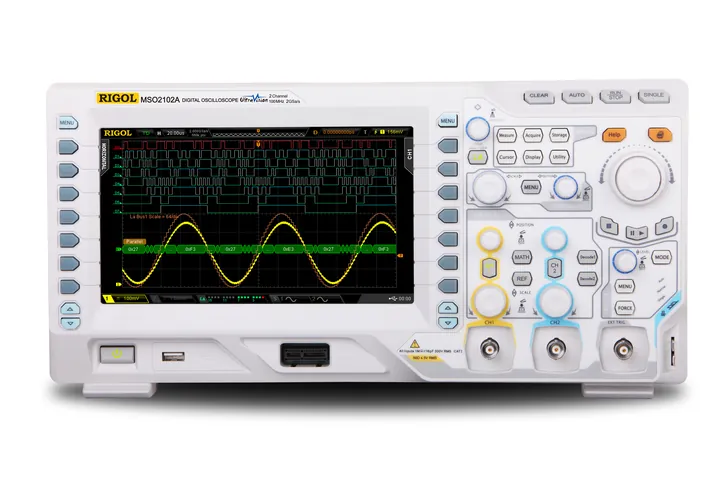

RIGOL MSO2000A Series
6 models, list from $1,199. Compare them, add options and accessories, and request one quote for the lot.
The MSO2000A pairs two analog channels with 16 digital channels, the classic layout for embedded work where you watch one or two analog signals against a bus. Analog sampling is 2 GSa/s and digital 1 GSa/s, with 14 Mpts standard (56 Mpts analog / 28 Mpts digital optional), a standard 50 Ω input, and RIGOL's UltraVision engine at up to 52,000 waveforms a second.
The -S models add a built-in 2-channel 25 MHz signal source for stimulus. Bandwidths are 100, 200 and 300 MHz; serial triggers and decodes cover the common embedded buses.
CH1Models
| Model | Bandwidth | Channels | Description | List price | Quote |
|---|---|---|---|---|---|
| MSO2102A | 100 MHz | 2 | 100 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $1,199 | |
| MSO2202A | 200 MHz | 2 | 200 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $1,299 | |
| MSO2102A-S | 100 MHz | 2 | 100 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input and 2 ch source embedded | $1,499 | |
| MSO2302A | 300 MHz | 2 | 300 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included | $1,499 | |
| MSO2202A-S | 200 MHz | 2 | 200 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input and 2 ch source embedded | $1,699 | |
| MSO2302A-S | 300 MHz | 2 | 300 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input and 2 ch source embedded | $1,799 |
CH2Options and accessories
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| UPA-DS | Power Analysis Software for DS2, MSO2, DS4, & MSO4 series oscilloscopes | $880 |
Probes (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| PVP2350 | PVP2350 -- 350 MHz Passive Probe with 1x:10x selector. With bandwidth of 35 MHz in 1x mode -- Replaces the RP3300A | $47 | |
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RPL2316 | Standard logic probe for MSO4000 and MSO2000A | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1050D | High Voltage Differential Probe, DC-50 MHz, 7000 Vpp | $683 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 |
Accessories (7)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| RA5040K | 40 dB attenuator accessory for oscilloscopes or generators | $47 | |
| RPA246 | Power analysis phase difference correction jig | $59 | |
| BAG-G1 | Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope. | $155 | |
| DK-DS6000 | Demo Board for oscilloscopes | $231 | |
| USB-GPIB | USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly | $346 | |
| RM-DS2000 | Rack Mount Kit for the DS2000 and DS2000A Series Oscilloscope. | $469 |
Extended warranty (6)
| Part | Description | List price | Quote |
|---|---|---|---|
| MSO2102A (R5-1) | MSO2102A extended warranty, 2 years, option with new product | $90 | |
| MSO2102A-S (R5-1) | MSO2102A-S extended warranty, 2 years, option with new product | $114 | |
| MSO2202A (R5-1) | MSO2202A extended warranty, 2 years, option with new product | $95 | |
| MSO2202A-S (R5-1) | MSO2202A-S extended warranty, 2 years, option with new product | $125 | |
| MSO2302A (R5-1) | MSO2302A extended warranty, 2 years, option with new product | $113 | |
| MSO2302A-S (R5-1) | MSO2302A-S extended warranty, 2 years, option with new product | $136 |
