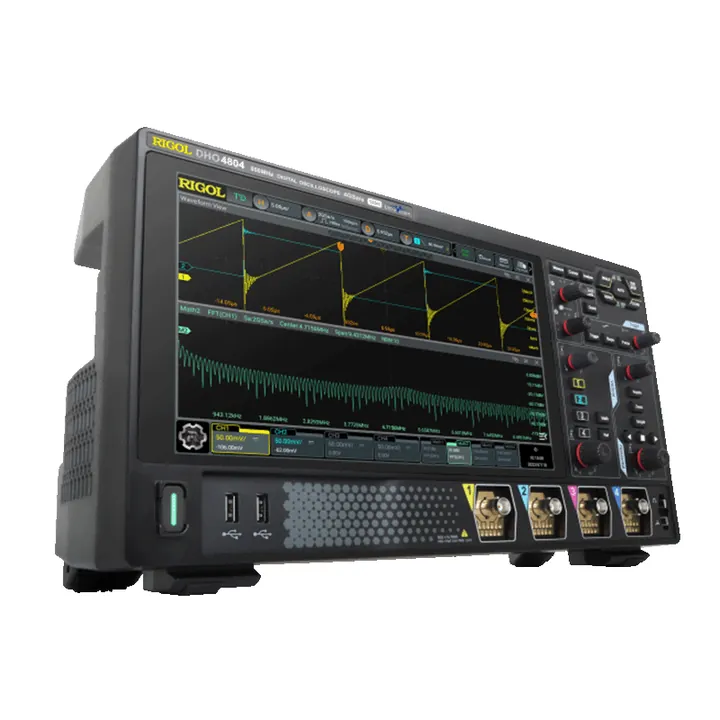

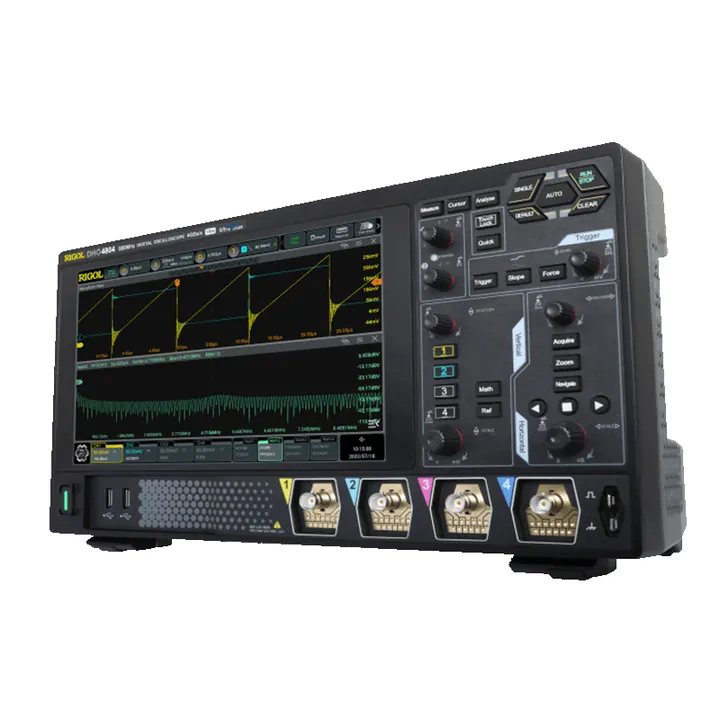

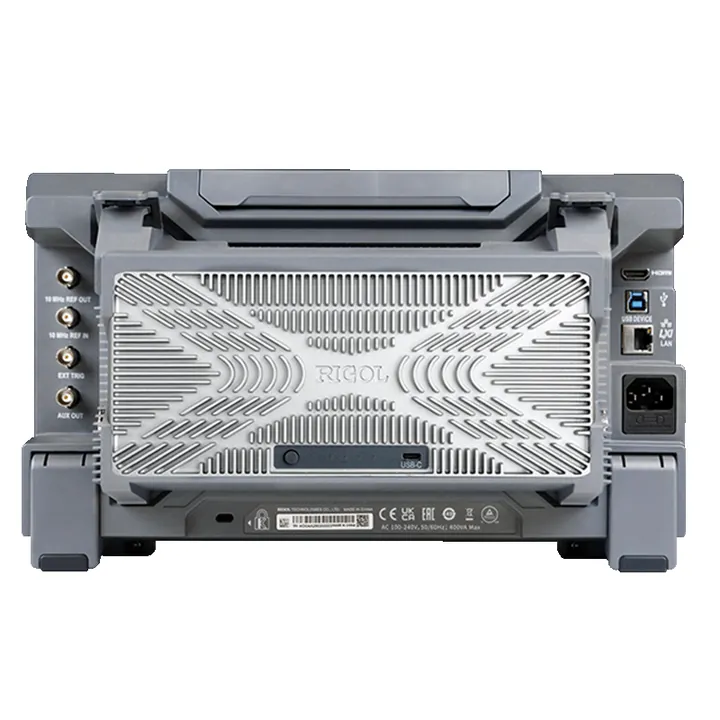

RIGOL DHO4404
400 MHz 4-Channel 12-bit Digital Oscilloscope · DHO4000 Series
High Resolution 4 Channel, 400 MHz Digital Oscilloscope - 12 bit, 4 GSa/sec, 250 MPts Memory
List price $4,059
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DHO4404 at a glance
- 400 MHz of bandwidth on 4 analog channels.
- 12-bit vertical resolution for small signals riding on large ones.
- 12-bit resolution with 4 GSa/s sampling.
- 250 Mpts memory for long, detailed captures.
- 4 channels at 200, 400 or 800 MHz.
CH2RIGOL DHO4404 specifications
| Figure | DHO4404 | Source |
|---|---|---|
| Part number | DHO4404 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DHO4000 Series | RIGOL price list |
| Bandwidth | 400 MHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 12-bit | rigolna.com |
| Max. memory depth | 250 Mpts | rigolna.com |
| Max. real-time sample rate | 4 GSa/s | rigolna.com |
| Max. waveform capture rate | 50 Kwfms/s | rigolna.com |
| Interfaces | USB 3.0 Host & Device, LAN (10/100/1000, LXI-C), HDMI | DHO4000 (HDO4000) datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 21 × 14 × 11 in | RIGOL price list |
| Shipping weight | 12 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- 4 Passive Probes
- Power Cord
- USB Cable
- Calibration Certificate
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Power-electronics switching analysis that needs speed and resolution together.
- High-speed digital timing on four channels.
- Long single-shot captures of rare events at full sample rate.
CH4Questions buyers ask
What comes in the box with the RIGOL DHO4404?
RIGOL lists these standard accessories: 4 Passive Probes, Power Cord, USB Cable, Calibration Certificate.
Can I add options to the DHO4404 later?
Yes. RIGOL lists 10 options and software packages for the DHO4000 Series (for example DHO4000-AEROA, DHO4000-AUDIOA, DHO4000-AUTOA, DHO4000-BND). Add them to your quote now or ask about an upgrade later.
Do you ship the DHO4404 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DHO4404
Options and accessories for the DHO4404
Options & upgrades (10)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO4000-AEROA | DHO4000 Series Serial Decoding for Aerospace Upgrade License including MIL-STD-1553 | $329 | |
| DHO4000-AUDIOA | DHO4000 Series Serial Decoding for Audio Upgrade License including I2S | $329 | |
| DHO4000-AUTOA | DHO4000 Series Serial Decoding for Automotive Upgrade License including CAN-FD, and LIN | $329 | |
| DHO4000-FLEXA | DHO4000 Series Serial Decoding for FlexRay Upgrade License | $329 | |
| DHO4000-PWRA | DHO4000 Series Power Analysis Feature Option License | $329 | |
| DHO4000-RLU-05 | DHO4000 Series Deep Memory Upgrade License to 500 MPts memory | $489 | |
| DHO4000-BND | DHO4000 Series Options Bundle includes all Serial Decode & Power Analysis Options | $849 | |
| DHO4000-BWU2T4 | DHO4000 Series Bandwidth Upgrade License from 200 MHz to 400 MHz | $1,299 | |
| DHO4000-BWU4T8 | DHO4000 Series Bandwidth Upgrade License from 400 MHz to 800 MHz | $1,299 | |
| DHO4000-BWU2T8 | DHO4000 Series Bandwidth Upgrade License from 200 MHz to 800 MHz | $2,439 |
Probes (22)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1002C | Current Probe, DC-1 MHz, 100A peak | $1,791 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| PCA1030 | 50 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $4,890 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1020 | 200MHz optical isolation probe, standard with one 20x attenuator. | $5,499 | |
| PCA1150 | 10 MHz, 300 A Current Probe for 7000 & 8000 Series Oscilloscopes | $5,890 | |
| PCA2030 | 100 MHz, 30 A Current Probe for 7000 & 8000 Series Oscilloscopes | $6,390 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (3)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BatHolder350 | Battery compartment | $1,099 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DHO4404 (R5-1) | DHO4404 extended warranty, 2 years, option with new product | $333 |
