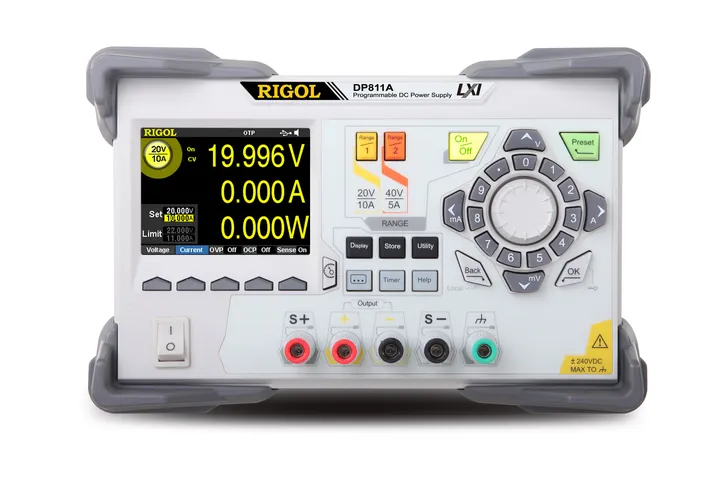

RIGOL DP811A
200 W 1-Channel Programmable DC Power Supply · DP800 Series
Power Supply with a 200 W single output, 1 mV/1 mA measurement resolution, monitoring, analysis, trigger I/O, and LAN interface
List price $739
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DP811A at a glance
- 1 outputs with 200 W total.
- Output up to 40 Volts / 10 Amps per output.
- Low noise: under 350 µVrms / 2 mVpp on the multi-output models.
- Fast transient response, under 50 µs.
- Some channels isolated, for floating and series/parallel setups.
- A models: LAN, RS-232 and digital I/O standard, plus recorder and analyzer functions.
CH2RIGOL DP811A specifications
| Figure | DP811A | Source |
|---|---|---|
| Part number | DP811A | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DP800 Series | RIGOL price list |
| Display | 3.5-inch TFT | DP800 datasheet |
| Interfaces | USB Host & Device standard; LAN, RS-232, digital I/O standard on A models (optional otherwise); USB-GPIB optional | DP800 datasheet |
| Total power | 200 Watts | rigolna.com |
| Outputs | 1 channel(s) | rigolna.com |
| Max. voltage | 40 Volts | rigolna.com |
| Max. current | 10 Amps | rigolna.com |
| Output ranges | up to 40 Volts / 10 Amps per output (see datasheet for each channel) | rigolna.com |
| Readback resolution | A models: down to 0.1 mV / 0.1 mA (DP832A); standard models: 10 mV / 10 mA | DP800 datasheet / RIGOL product descriptions |
| Ripple and noise | < 350 µVrms / 2 mVpp (multi-output models) | DP800 datasheet |
| Dimensions | 239 × 157 × 418 mm (W×H×D) | DP800 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 15 × 12 in | RIGOL price list |
| Shipping weight | 30 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Spare Fuses
- USB Cable
- Calibration Certificate
- Power Cord
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Powering mixed-voltage boards (3.3 V, 5 V and ±rails) from one supply.
- Automated test with SCPI over USB or LAN.
- Characterizing power draw with the built-in recorder (A models).
CH4Questions buyers ask
What do the A models add?
Finer readback resolution, the recorder/analyzer/monitor/trigger functions, and LAN, RS-232 and digital I/O as standard. On the non-A models those are optional.
What comes in the box with the RIGOL DP811A?
RIGOL lists these standard accessories: Spare Fuses, USB Cable, Calibration Certificate, Power Cord.
Can I add options to the DP811A later?
Yes. RIGOL lists 4 options and software packages for the DP800 Series (for example AFK-DP800, DIGITALIO-DP800, HIRES-DP800, INTERFACE-DP800). Add them to your quote now or ask about an upgrade later.
Do you ship the DP811A outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DP811A
Options and accessories for the DP811A
Options & upgrades (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| AFK-DP800 | Detect and Analyzer option for DP832, DP811, DP821, DP831 | $108 | |
| DIGITALIO-DP800 | Four channels for trigger in & out option for DP832, DP811, DP821, DP831 | $108 | |
| HIRES-DP800 | 1mV/1mA Resolution Option for DP832, DP811, DP821, DP831 | $108 | |
| INTERFACE-DP800 | RS-232 and LAN interface option for DP832, DP811, DP821, DP831 | $140 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| 10A-Testing-Cable | 10 A testing cable for DP Series | $25 | |
| SPG-DP800 | Green Safty Plug for DP800 | $59 | |
| RM-2-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $122 | |
| RM-1-DP800 | Rack Mount Kit for DP800 series Power Supplies and DL3000 Loads | $137 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DP811A (R5-1) | DP811A extended warranty, 2 years, option with new product | $69 |
