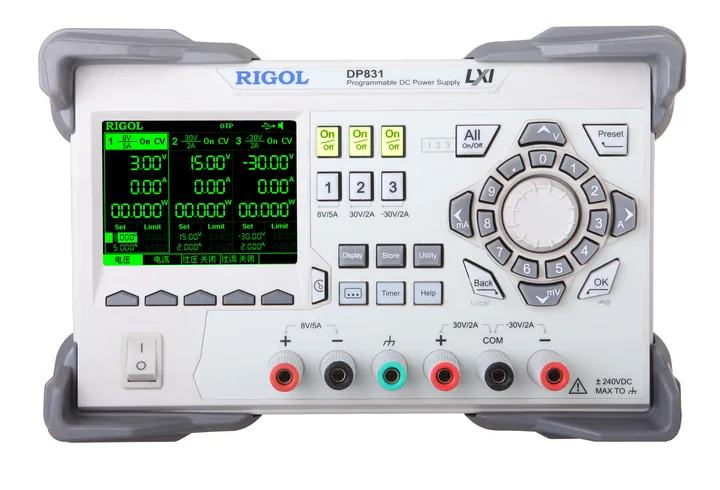

RIGOL DP800 Series

12 models, list from $449. Compare them, add options and accessories, and request one quote for the lot.

The DP800 is RIGOL's workhorse programmable linear bench supply. The three-output DP832 and DP832A (30 V/3 A twice, plus 5 V/3 A, 195 W total) are the familiar ones, and the family also covers dual outputs with remote sense (DP821, DP822) and 200 W single outputs (DP811, DP813).

Ripple and noise stay under 350 µVrms, transient response is under 50 µs, and every channel has OVP, OCP and over-temperature protection with built-in V/A/W metering and waveform display. The A models add finer readback (down to 0.1 mV/0.1 mA on the DP832A), and the recorder, analyzer, monitor and trigger functions. They also have LAN, RS-232 and digital I/O as standard, which are options on the other models.
