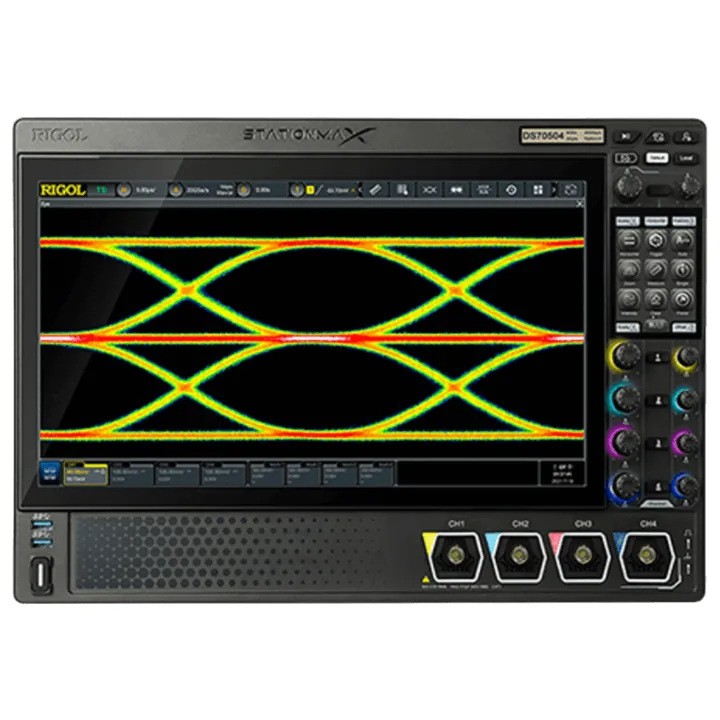

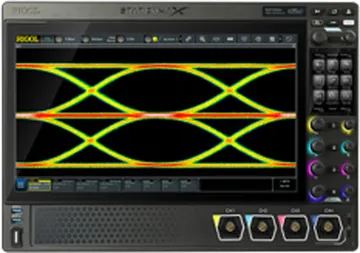

RIGOL DS70504
5 GHz 4-Channel Digital Oscilloscope · DS70000 Series
5 GHz Oscilloscope with 20 Gsa/sec sampling and 15.6" Display
List price $36,699
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL DS70504 at a glance
- 5 GHz of bandwidth on 4 analog channels.
- Up to 20 gsa/s sampling and up to up to 2 gpts of record length, so long captures keep their detail.
- 3 or 5 GHz on 4 channels with 20 GSa/s sampling.
- Memory up to 2 Gpts; over 1,000,000 wfms/s.
- 15.6-inch display.
- Ethernet and USB compliance options available.
CH2RIGOL DS70504 specifications
| Figure | DS70504 | Source |
|---|---|---|
| Part number | DS70504 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | DS70000 Series | RIGOL price list |
| Bandwidth | 5 GHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Max. memory depth | up to 2 Gpts | DS70000 datasheet |
| Max. real-time sample rate | 20 GSa/s | DS70000 datasheet |
| Max. waveform capture rate | 1 Mwfms/s | rigolna.com |
| Display | 15.6-inch | RIGOL product description |
| Interfaces | USB Host & Device, LAN (LXI), HDMI, AUX out; Web Control | DS70000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 27 × 24 × 22 in | RIGOL price list |
| Shipping weight | 70 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- 4 Passive Probes
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- High-speed interface validation and compliance pre-checks.
- Automotive and industrial Ethernet testing with the compliance options.
- Signal-integrity work that needs both bandwidth and deep memory.
CH4Questions buyers ask
What comes in the box with the RIGOL DS70504?
RIGOL lists these standard accessories: 4 Passive Probes, Calibration Certificate, Power Cord, USB Cable.
Can I add options to the DS70504 later?
Yes. RIGOL lists 17 options and software packages for the DS70000 Series (for example DS70000-10MAUTOC, DS70000-10MINDUC, DS70000-AENETC, DS70000-AEROA). Add them to your quote now or ask about an upgrade later.
Do you ship the DS70504 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the DS70504
Options and accessories for the DS70504
Options & upgrades (17)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS70000-AEROA | Aerospace Serial Bus Trigger and Analysis (MIL-STD_1553 and ARINC429) | $2,499 | |
| DS70000-AUDIOA | Audio Serial bus Trigger and Analysis (I2S) | $2,499 | |
| DS70000-AUTOA | Auto Serial Bus Trigger and Analysis (CAN, CAN-FD, LIN, and FlexRay) | $2,499 | |
| DS70000-EMBDA | Embedded Serial Bus Trigger and Analysis (RS232/UART, I2C, and SPI) | $2,499 | |
| DS70000-RFFEA | DS70000 MIPI-RFFE protocol analysis option | $2,499 | |
| DS70000-USBA | DS70000 USB2.0 protocol analysis option | $2,499 | |
| DS70000-USBC | USB2.0 Pre-compliance Test | $3,599 | |
| DS80000-DPHYC | D-PHY Compliance Test | $4,199 | |
| DS70000-10MAUTOC New | 10M-BaseT1S Automotive Ethernet Compliance | $5,409 | |
| DS70000-10MINDUC New | 10M Industrial Ethernet Compliance(T1L) | $5,409 | |
| DS70000-RL-20 | 2 Billion Points Memory Depth Upgrade | $5,899 | |
| DS70000-RTSA | Real Time Spectrum Analysis | $5,899 | |
| DS80000-USB3C | USB 3.0 Compliance Test | $6,899 | |
| DS70000-AENETC New | On-board Ethernet consistency analysis software | $7,219 | |
| DS70000-DPHY12C New | MIPI D-PHY Compliance | $7,219 | |
| DS70000-JITTA | Real-time Eye Diagram and Jitter Analysis Option | $7,219 | |
| DS70000-ENETC | 10/100/1000 Mb/s Ethernet Pre-compliance Test | $9,039 |
Probes (20)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1020 | 200MHz optical isolation probe, standard with one 20x attenuator. | $5,499 | |
| PVA8350 | 3.5 GHz active differential probe with 3 position memory and light | $5,899 | |
| PVA8700 | 7 GHz active differential probe with 3 position memory and light | $8,799 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| TF-AENET-CME-STP | Automotive Ethernet Common-Mode Emission Board | $209 | |
| RM7011 | Rack mounting kit compatible with DG70000 and DS70000 series | $299 | |
| TF-AENET-MAT-STP New | Automotive Ethernet SMA-MATEnet adapter | $519 | |
| TF-AENET-MTD-STP New | Automotive Ethernet SMA-HMTD adapter | $519 | |
| TF-AENET-PAD-STP New | Car Ethernet welded adapter | $519 | |
| TF-USBH-STP | USB2.0 Host Compliance Test Fixture | $639 | |
| TF-ENET10G-RL-STP | return-loss test fixture | $879 | |
| TF-USBD-STP | USB2.0 Device Compliance Test Fixture | $1,189 | |
| TF-AENET-MB-STP New | Car Ethernet distribution board | $1,599 | |
| TFB-AENET-MAT-STP | Car Ethernet MATEnet interface fixture kit | $2,329 | |
| TFB-AENET-MTD-STP | Car Ethernet H-MTD interface fixture kit | $2,329 | |
| TF-ENET-STP | 10/100/1000M Ethernet Compliance Test Fixture | $3,269 | |
| TF-PCIE3-CLBX1X16-STP New | PCIE3 Compliance CLBX1X16 | $8,849 | |
| TF-PCIE3-CBB-STP New | PCIE3 Compliance CBB | $9,579 | |
| TF-PCIE3-CLBX4X8-STP New | PCIE Compliance CLBX4X8 | $9,759 | |
| TF-PCIE3-KIT-STP New | PCIE3 Compliance Test Fixture KIT | $27,519 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| DS70504 (R5-1) | DS70504 extended warranty, 2 years, option with new product | $3,150 |
