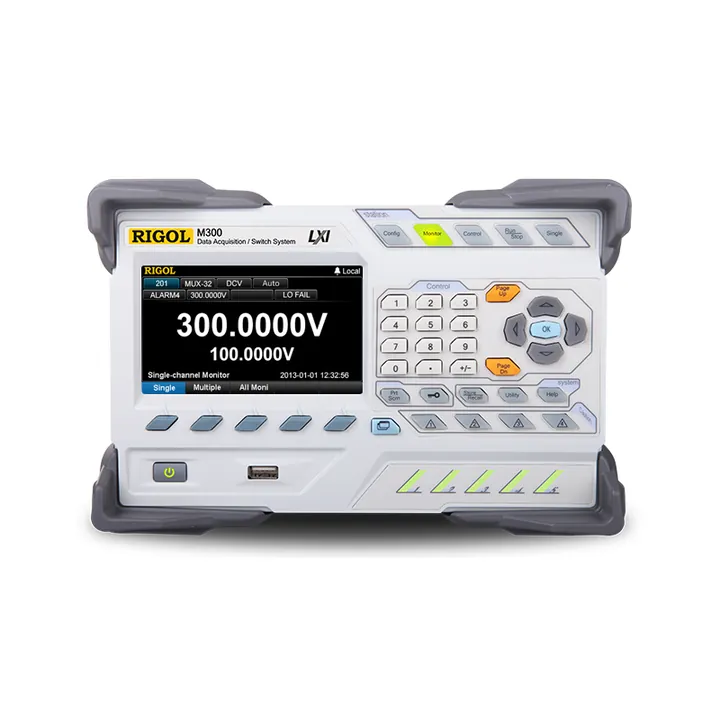

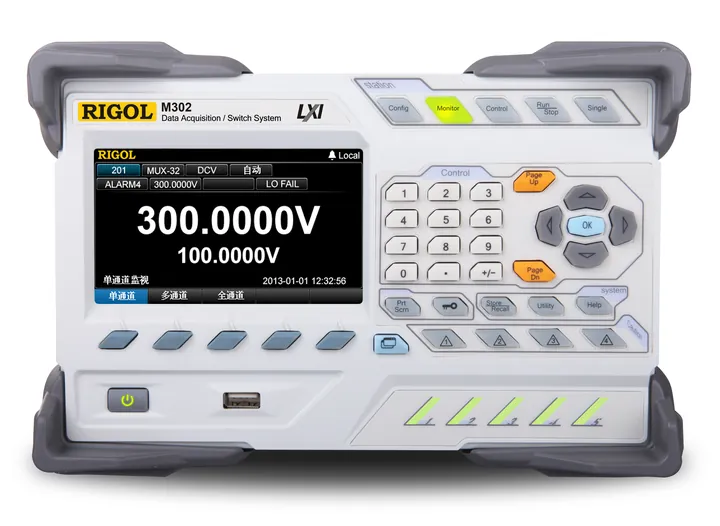

RIGOL M302
Data Acquisition System · M300 Series
Mainframe(including 6.5 DMM, MC3120, M3TB20)
List price $1,899
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL M302 at a glance
- 6½ digits (with the MC3065 DMM module) of resolution.
- 23 compatible RIGOL options and accessories, listed below, so you can quote everything at once.
- Up to 320 switch channels in one mainframe, across 5 card slots.
- Stand-alone scanning with up to 100,000 time-stamped readings stored.
- 6½-digit DMM module (MC3065) that can go in any slot; included on the M301 and M302.
- USB, GPIB, LAN (LXI) and RS-232, with standard SCPI commands.
CH2RIGOL M302 specifications
| Figure | M302 | Source |
|---|---|---|
| Part number | M302 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | M300 Series | RIGOL price list |
| Analog channels | Up to 320 switch channels per mainframe | M300 datasheet |
| Interfaces | USB Device & Host, GPIB, LAN (LXI-Core 2011), RS-232 | M300 datasheet |
| Resolution | 6½ digits (with the MC3065 DMM module) | M300 datasheet |
| Module slots | 5 (DMM and MC3120 use one of these slots each) | rigolna.com |
| Measurement functions | Scanning DMM (with MC3065), multiplexer/matrix/actuator cards; AVG/MAX/MIN/SDEV statistics | M300 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 23 × 21 × 16 in | RIGOL price list |
| Shipping weight | 28 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · Specifications · User manual · Quick guide · RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Temperature and voltage burn-in monitoring across dozens of channels.
- Production test fixtures that switch one meter across many test points.
- Environmental chamber logging without a dedicated PC.
CH4Questions buyers ask
What's included with the M301 and M302?
The M301 includes the MC3065 6½-digit DMM module. The M302 includes the DMM module, an MC3120 card and an M3TB20 terminal box. The M300 is the mainframe only.
Can I add options to the M302 later?
Yes. RIGOL lists 1 options and software packages for the M300 Series (for example Ultra Acquire Pro). Add them to your quote now or ask about an upgrade later.
Do you ship the M302 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the M302
Options and accessories for the M302
Software (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| Ultra Acquire Pro | Scan Control Software for M300 Series Mainframes and cards | $965 |
Accessories (21)
| Part | Description | List price | Quote |
|---|---|---|---|
| M3A2B | Analog Bus to Banana port for M300 | $21 | |
| M3GPIB | GPIB Reverse Entry Adaptor for M300 | $72 | |
| M3TB16 | ACT Terminal Box | $74 | |
| M3TB24 | 24 channel MUX Terminal Box | $79 | |
| M3TB32 | 32 channel MUX Terminal Box | $79 | |
| M3TB32T | Terminal Box for MC3132(Dedicated to temperature test) | $79 | |
| M3TB34 | MFC Terminal Box | $79 | |
| M3TB48 | MATRIX Terminal Box | $79 | |
| M3TB64 | 64 channel MUX Terminal Box | $79 | |
| M3TB20 | 20 channel MUX Terminal Box | $82 | |
| RM-1-M300 | Rack Mounting Kit for one M300 | $281 | |
| RM-2-M300 | Rack Mounting Kit for two M300 | $315 | |
| MC3120 | 20-channel Multiplexer | $399 | |
| MC3416 | ACT Module | $439 | |
| MC3132 | MUX32 Module | $499 | |
| MC3164 | MUX64 Module | $499 | |
| MC3648 | MATRIX Module | $539 | |
| MC3065 | DMM Module | $589 | |
| MC3324 | MIX Module | $599 | |
| MC3534 | MFC Module | $669 | |
| DEMOKIT-M300 | Demo Kit for M300 | $799 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| M302 (R5-1) | M302 extended warranty, 2 years, option with new product | $159 |
