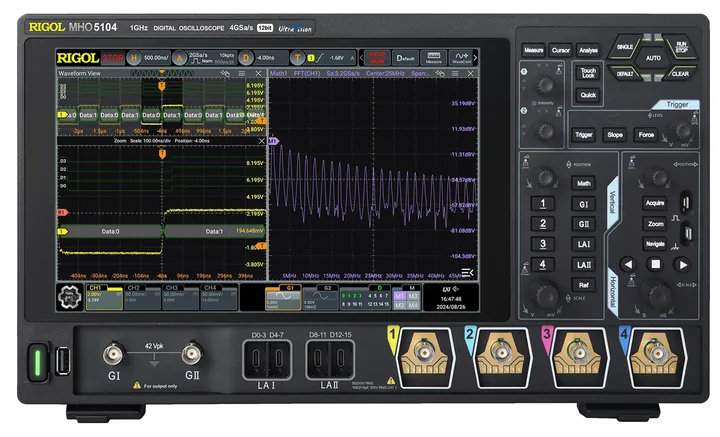

RIGOL MHO5104
1 GHz 4-Channel 12-bit Mixed Signal Oscilloscope · MHO5000 Series
Digital Oscilloscope, 1GHz, 4GSa/s, 4CH, 12bit, with LA&AFG
List price $7,499
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL MHO5104 at a glance
- 1 GHz of bandwidth on 4 analog channels, plus 16 digital channels.
- 12-bit vertical resolution for small signals riding on large ones.
- 4 or 6 analog channels with 12-bit resolution and 100 µV/div sensitivity.
- 4 GSa/s sampling and 500 Mpts memory.
- 16 digital channels built in; 4-channel models include the waveform generator.
- Battery-pack capable, with a 10.1-inch 1280×800 touch screen.
CH2RIGOL MHO5104 specifications
| Figure | MHO5104 | Source |
|---|---|---|
| Part number | MHO5104 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | MHO5000 Series | RIGOL price list |
| Bandwidth | 1 GHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 12-bit | MHO/DHO5000 datasheet |
| Max. memory depth | 500 Mpts | MHO/DHO5000 datasheet |
| Max. real-time sample rate | 4 GSa/s | MHO/DHO5000 datasheet |
| Max. waveform capture rate | 1 Mwfms/s | rigolna.com |
| Digital channels | 16 | rigolna.com |
| Display | 10.1-inch 1280×800 touch screen | MHO/DHO5000 datasheet |
| Interfaces | USB Device & Host, LAN, HDMI | MHO/DHO5000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 18.8 × 13.6 × 10 in | RIGOL price list |
| Shipping weight | 16.23 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- Passive Probes - One per channel
- Probes - 1 per channel
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- Three-phase motor drive and inverter analysis on six channels.
- Power-supply loop response with the built-in generator and Bode plot.
- High-resolution mixed-signal debug up to 1 GHz.
CH4Questions buyers ask
Which MHO5000 models include the waveform generator?
The 4-channel models (MHO5054, MHO5104) list it as included ("with LA & AFG"); the 6-channel models list the logic analyzer only.
What comes in the box with the RIGOL MHO5104?
RIGOL lists these standard accessories: Passive Probes - One per channel, Probes - 1 per channel, Calibration Certificate, Power Cord, USB Cable.
Can I add options to the MHO5104 later?
Yes. RIGOL lists 19 options and software packages for the MHO5000 Series (for example MHO5000-3PHA, MHO5000-AEROA, MHO5000-AUDIOA, MHO5000-AUTOA). Add them to your quote now or ask about an upgrade later.
Do you ship the MHO5104 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the MHO5104
Options and accessories for the MHO5104
Options & upgrades (19)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO5000-AWG | Built-in Dual-Channel 50MHz Function Signal | $749 | |
| MHO5000-AEROA | MIL-STD-1553 Bus Trigger and Decoding Option | $929 | |
| MHO5000-AUDIOA | I2S Audio Bus Trigger and Analysis Option | $929 | |
| MHO5000-AUTOA | CAN/CAN-FD, LIN Bus Trigger and Decoding Option | $929 | |
| MHO5000-FlexA | FlexRay Trigger and Decoding Option | $929 | |
| DHO5000-AEROA | MIL-STD-1553 Bus Trigger and Decoding Option | $929 | |
| DHO5000-AUDIOA | I2S Audio Bus Trigger and Analysis Option | $929 | |
| DHO5000-AUTOA | CAN/CAN-FD, LIN Bus Trigger and Decoding Option | $929 | |
| DHO5000-FlexA | FlexRay Trigger and Decoding Option | $929 | |
| MHO5000-3PHA New | 3-Phase Power Analysis | $1,599 | |
| MHO5000-PWRA | Power Analysis Option | $1,599 | |
| DHO5000-PWRA | Power Analysis Option | $1,599 | |
| MHO5004-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $2,199 | |
| DHO5004-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $2,199 | |
| MHO5006-BND | Bundle Option | $2,719 | |
| DHO5000-BND | Bundle Option | $2,719 | |
| MHO5004-BND | Bundle Option | $3,089 | |
| MHO5006-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $4,299 | |
| DHO5008-BWU05T10 | 500MHz to 1GHz Bandwidth Upgrade Option | $4,299 |
Probes (19)
| Part | Description | List price | Quote |
|---|---|---|---|
| PLA3204 | Quad-channel Logic Analyzer Probe | $189 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| PVA8150S | 1.5GHz active single-ended probe, input impedance 1MΩ | $2,149 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1020 | 200MHz optical isolation probe, standard with one 20x attenuator. | $5,499 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| RM6051 | Thunderbird Platform Rack Mount Kit | $259 | |
| BatHolder350 | Battery compartment | $1,099 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO5104 (R5-1) | MHO5104 extended warranty, 2 years, option with new product | $567 |
