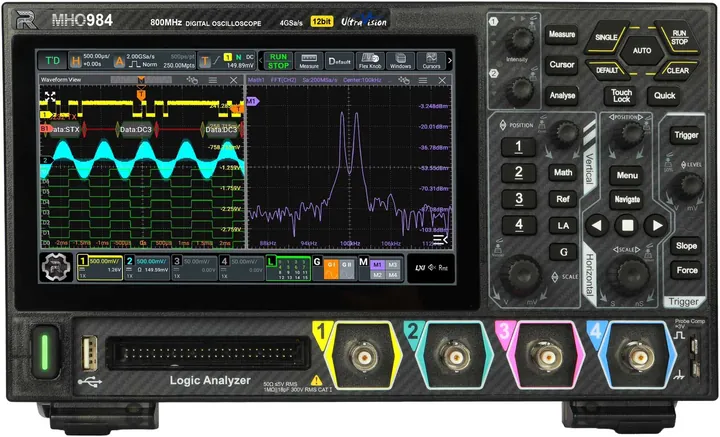

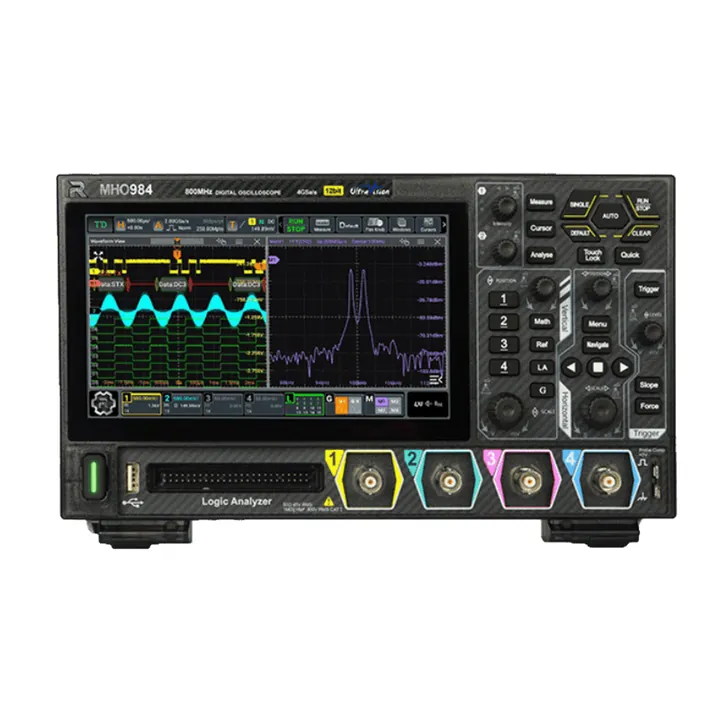

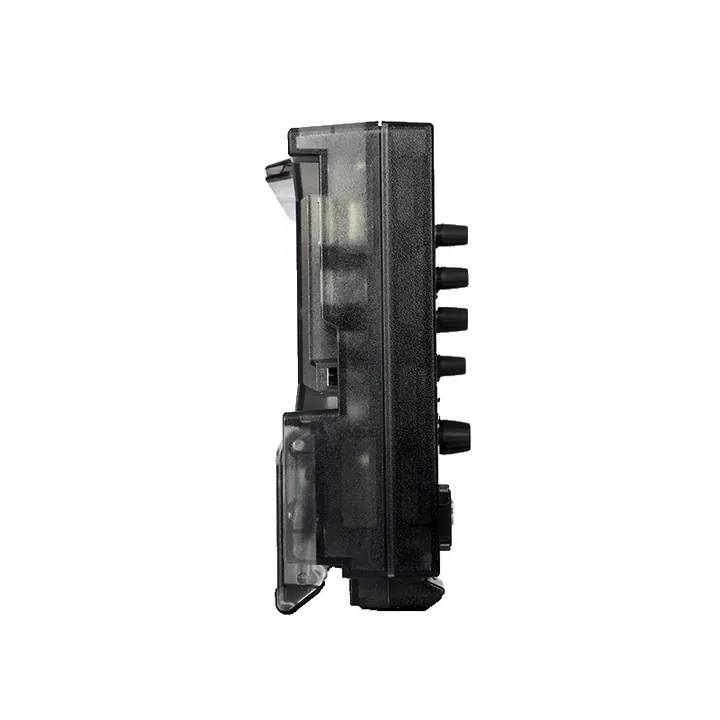

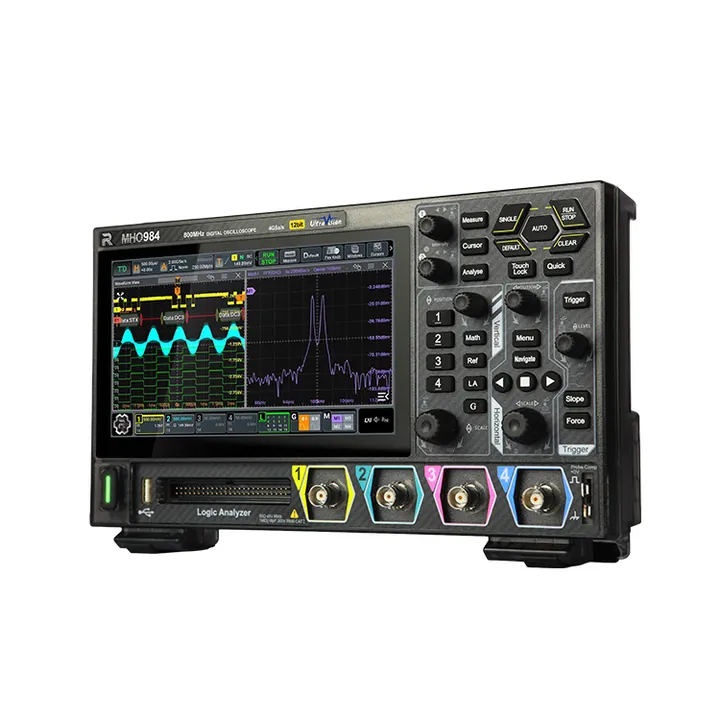

RIGOL MHO954
500 MHz 4-Channel 12-bit Mixed Signal Oscilloscope · MHO900 Series
500MHz, 4GSa/s, 12bit, Mixed Signal Oscilloscope
List price $1,199
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL MHO954 at a glance
- 500 MHz of bandwidth on 4 analog channels.
- 12-bit vertical resolution for small signals riding on large ones.
- 350, 500 or 800 MHz with 4 analog channels and 12-bit resolution.
- 4 GSa/s real-time sampling and up to 1,000,000 wfms/s.
- 100 Mpts standard memory, 500 Mpts with the option.
- 16 digital channels with the PLA2216 probe; optional built-in generator with Bode plot.
CH2RIGOL MHO954 specifications
| Figure | MHO954 | Source |
|---|---|---|
| Part number | MHO954 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | MHO900 Series | RIGOL price list |
| Bandwidth | 500 MHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Vertical resolution | 12-bit | MHO900 datasheet |
| Max. memory depth | 100 Mpts standard; 500 Mpts with the memory option | MHO900 datasheet p.6 |
| Max. real-time sample rate | 4 GSa/s (1 channel), 2 GSa/s (2), 1 GSa/s (all) | MHO900 datasheet p.11 |
| Max. waveform capture rate | 1 Mwfms/s | rigolna.com |
| Digital channels | 16 (PLA2216 probe, optional) | MHO900 datasheet |
| Built-in generator | Optional 2-channel 50/100 MHz AFG with Bode plot | MHO900 datasheet |
| Display | 7-inch 1024×600 multi-touch | MHO900 datasheet p.6 |
| Interfaces | USB 2.0 Host & Device, LAN (100M), HDMI; USB-C power input | MHO900 datasheet p.6 |
| Input impedance | 1 MΩ ±1% and 50 Ω ±1% | MHO900 datasheet p.6 |
| Dimensions | 265.35 × 161.75 × 77.38 mm (W×H×D) | MHO900 datasheet |
| Weight | approx. 1.6 kg without package | MHO900 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 13.5 × 9.76 × 5.62 in | RIGOL price list |
| Shipping weight | 6.5 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: RIGOL's series page.
CH3In the box, and what it is for
What's in the box
- 4 Passive Probes
- Calibration Certificate
- Power Cord
- USB Cable
Standard accessories as RIGOL lists them; your quote confirms them.
What it's good for
- High-speed digital and clock work up to 800 MHz on a budget bench.
- Power-supply loop response with the optional generator and Bode plot.
- Mixed-signal embedded debug with 4 analog + 16 digital channels.
CH4Questions buyers ask
Is 500 Mpts memory standard?
No. The MHO900 has 100 Mpts as standard (single channel); 500 Mpts needs RIGOL's memory option. Some listings quote 500 Mpts as if it were standard.
Does it come with probes?
Yes, RIGOL includes four passive probes. The PLA2216 logic probe for the digital channels is sold separately.
Can I add options to the MHO954 later?
Yes. RIGOL lists 11 options and software packages for the MHO900 Series (for example MHO900-AEROA, MHO900-AFG100, MHO900-AFG50, MHO900-AUDIOA). Add them to your quote now or ask about an upgrade later.
Do you ship the MHO954 outside the US?
We ship within the USA only (all 50 states, DC and the US territories). Outside the US, send an international inquiry and we can point you to a RIGOL distributor in your country.
CH1Request a quote for the MHO954
Options and accessories for the MHO954
Options & upgrades (11)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO900-AEROA | MHO900, MIL-STD-1553 Bus Triggering and Decoding Analysis Option | $139 | |
| MHO900-AUDIOA | MHO900, I2S Audio-Bus Trigger and Analysis Option | $139 | |
| MHO900-AUTOA | MHO900, Automotive Serial Bus CAN-FD Decoding and Analysis Option | $139 | |
| MHO900-FlexA | MHO900, Flexray Bus Trigger and Decode Option | $139 | |
| MHO900-BWU03T05 | MHO900, 350 MHz to 500 MHz Bandwidth Upgrade Option | $279 | |
| MHO900-BWU05T08 | MHO900, 500 MHz to 800 MHz Bandwidth Upgrade Option | $279 | |
| MHO900-RLU-05 | MHO900, 500Mpts Memory Upgrade Option | $279 | |
| MHO900-AFG50 | MHO900, 2 Channel 50 MHz Arbitrary Function Generator Option, includes Bode-plot | $419 | |
| MHO900-BWU03T08 | MHO900, 350 MHz to 800 MHz Bandwidth Upgrade Option | $419 | |
| MHO900-AFG100 | MHO900, 2 Channel 100 MHz Arbitrary Function Generator Option, includes Bode-plot | $699 | |
| MHO900-BND | MHO900, Functional Upgrade Package Option, includes: AFG100, AUDIOA, AUTOA, FlexA, AEROA | $839 |
Probes (18)
| Part | Description | List price | Quote |
|---|---|---|---|
| RP3500A | 500 MHz Passive Probe | $231 | |
| RP1300H | 100:1 300 MHz TO 2KV PASSIVE PROBE | $243 | |
| PLA2216 | 16 Channel Digital Logic Probe | $399 | |
| RP1025D | High Voltage Differential Probe, DC-25 MHz, 1400 Vpp | $473 | |
| RP1010H | High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 | $524 | |
| RP1100D | High Voltage Differential Probe, DC-100 MHz, 7000 Vpp | $788 | |
| PHA0150 | 70 MHz 1500 V Differential Voltage Probe | $799 | |
| RP1001C | Current Probe, DC-300 kHz, 100 Apeak | $867 | |
| PHA1150 | 100 MHz 1500 V Differential Voltage Probe | $999 | |
| RP1018H | High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 | $1,038 | |
| RP1000P | RP1003C/RP1004C/RP1005C probe power supply | $1,560 | |
| PHA2150 | 200MHz, 1500V High Voltage Differential Probe | $1,590 | |
| RP1003C | Current Probe, DC-50 MHz, 50A peak. Requires RP1000P power supply. | $3,408 | |
| RP1005C | Current Probe, DC-10 MHz, 300A peak. Requires RP1000P power supply. | $4,332 | |
| RP1004C | Current Probe, DC-100 MHz, 50 A peak. Requires RP1000P power supply. | $4,909 | |
| RP1006C | Current Probe, DC-2 MHz, 500A peak. Requires RP1000P power supply. ≤25mArms noise | $5,490 | |
| PIA1050 | 500MHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $9,999 | |
| PIA1100 | 1GHz optical isolation probe, standard with one 50x and one 2000x attenuator. | $15,199 |
Accessories (4)
| Part | Description | List price | Quote |
|---|---|---|---|
| ADP0150BNC | 50 Ohm impedance adapter for oscilloscopes or generators | $19 | |
| CB-BNC-BNC-MM-100 | BNC Cable (length 1 meter) | $20 | |
| BAG-800 | Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800 | $69 | |
| RM5041 | Ultra-Portable Platform Rack Mount Kit | $179 |
Extended warranty (1)
| Part | Description | List price | Quote |
|---|---|---|---|
| MHO954 (R5-1) | MHO954 extended warranty, 2 years, option with new product | $99 |
