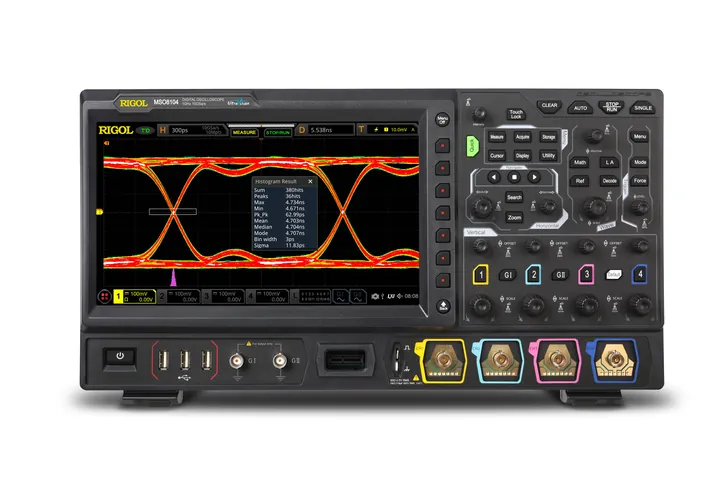

RIGOL MSO8104
1 GHz 4-Channel Mixed Signal Oscilloscope · MSO8000 Series
1GHZ Digital Oscilloscope with 4 channels, 10GSa/sec Sampling
List price $9,999
Quote-only: send the form and we confirm your price, any current RIGOL promotion and the lead time.
Ships within the USA only (50 states, DC, Puerto Rico, Guam, USVI, American Samoa, Northern Mariana Islands). Outside the US? Send an international inquiry
CH1RIGOL MSO8104 at a glance
- 1 GHz of bandwidth on 4 analog channels.
- Up to 10 gsa/s sampling and up to 500 mpts of record length, so long captures keep their detail.
- 600 MHz to 2 GHz on 4 analog channels at 10 GSa/s.
- 500 Mpts memory standard.
- 16 digital channels with the logic probe option.
- 10.1-inch capacitive touch screen; seven instruments in one.
CH2RIGOL MSO8104 specifications
| Figure | MSO8104 | Source |
|---|---|---|
| Part number | MSO8104 | RIGOL |
| Brand | RIGOL | RIGOL |
| Series | MSO8000 Series | RIGOL price list |
| Bandwidth | 1 GHz | rigolna.com |
| Analog channels | 4 | rigolna.com |
| Max. memory depth | 500 Mpts | MSO8000 datasheet |
| Max. real-time sample rate | 10 GSa/s | MSO8000 datasheet |
| Max. waveform capture rate | 600 Kwfms/s | rigolna.com |
| Digital channels | 16 (opt) | rigolna.com |
| Display | 10.1-inch capacitive multi-touch | MSO8000 datasheet |
| Interfaces | USB Host & Device, LAN (LXI), HDMI, Trig out | MSO8000 datasheet |
| Country of origin | Malaysia | RIGOL price list |
| Shipping dimensions | 21 × 18 × 15 in | RIGOL price list |
| Shipping weight | 20 lb | RIGOL price list |
RIGOL's own figures, from its data sheets and RIGOL North America's site; RIGOL's data sheet is the full reference. Documents: Datasheet · User manual · Quick guide · RIGOL's series page.
